HELIOS ESS &
Sol-Ark Hybrid
Inverters Integration

The Smart, Scalable Backup Solution.

Take control of your home’s energy with the proven combination of Discover Energy Systems’ HELIOS ESS and Sol-Ark Hybrid Inverters (12K | 15K | 18K).

This pairing is built for performance, resilience, and scalability, delivering whole-home backup with seamless switch-over, advanced monitoring, and simplified installation.

Whether you’re preparing for outages, reducing dependence on the grid, or seeking long-term cost savings, HELIOS + Sol-Ark offers a turnkey path to energy independence.



System Configurations

Feature12K-2P Essentials15K-2P Whole-Home18K-2P Premium
AC Power (Continuous) 9 kW AC backup output 15 kW AC grid output 18 kW AC continuous output
Surge / Peak Power Designed for essentials, modest surge support Higher surge to handle inductive loads and appliances 36 kVA surge (≈10 s) for motors/HVAC/heavy loads
Best Fit Use Cases Partial backup: essentials (lights, fridge, small appliances) Whole-home backup; electrical appliances, EV charging Demanding applications: HVAC, pumps, EV, high PV generation, off-grid
Backup Transfer Time ~5 ms ~5 ms ~5 ms
Grid Pass-Through 50 A grid pass-through; designed for “essentials” backup 200 A grid pass-through; supports larger homes 200 A grid pass-through; built for whole-home and heavy loads
Battery Charging Capability 185 A battery charge/discharge 275 A charge/discharge 350 A charge/discharge
Solar Input Capacity Up to 12 kW PV (AC/DC coupled) Up to 19.5 kW PV Up to 32.4 kW PV
MPPT Trackers 2 MPPTs 3 MPPTs 3 MPPTs (higher current handling)
Enclosure / Conditions IP65 outdoor-rated; −25°C to +55°C IP65 outdoor-rated; −25°C to +55°C IP65 outdoor-rated; −25°C to +55°C
Efficiency ~97.5% max; ~96.5% CEC ~97.5% max; ~96.5% CEC ~97.5% max; ~96.5% CEC
Recommended HELIOS

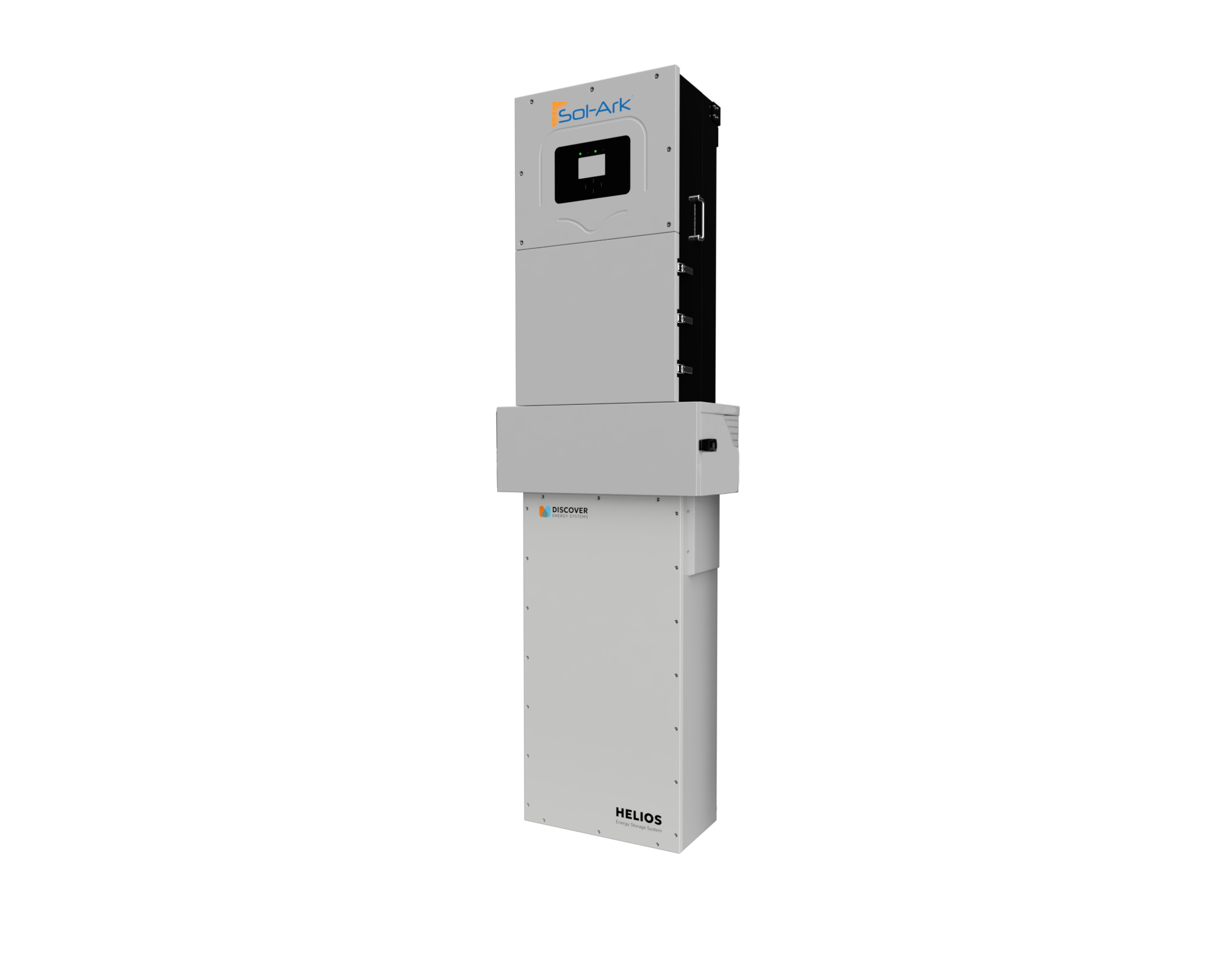

one HELIOS with 12K Sol-Ark

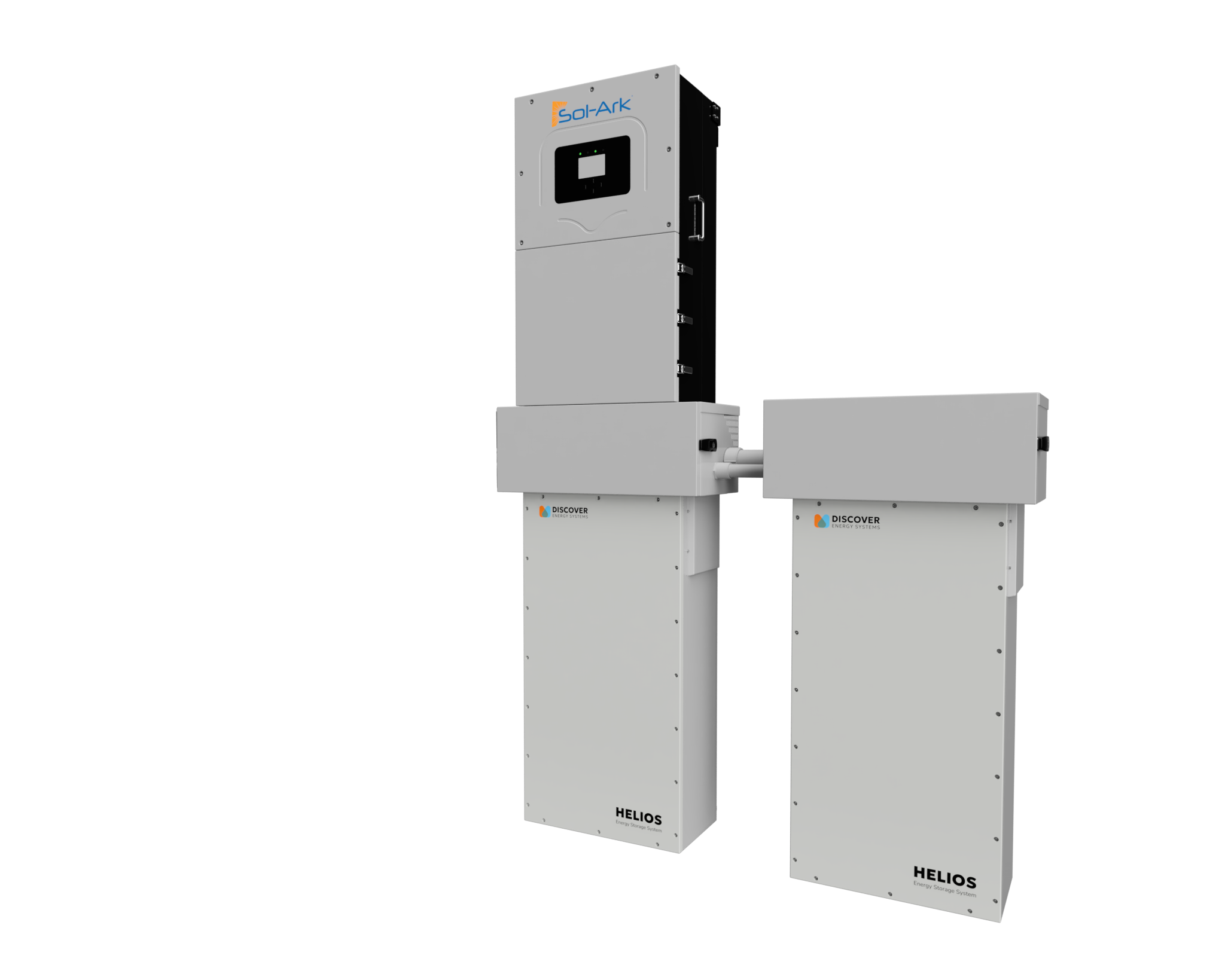

two HELIOS with 15K Sol-Ark

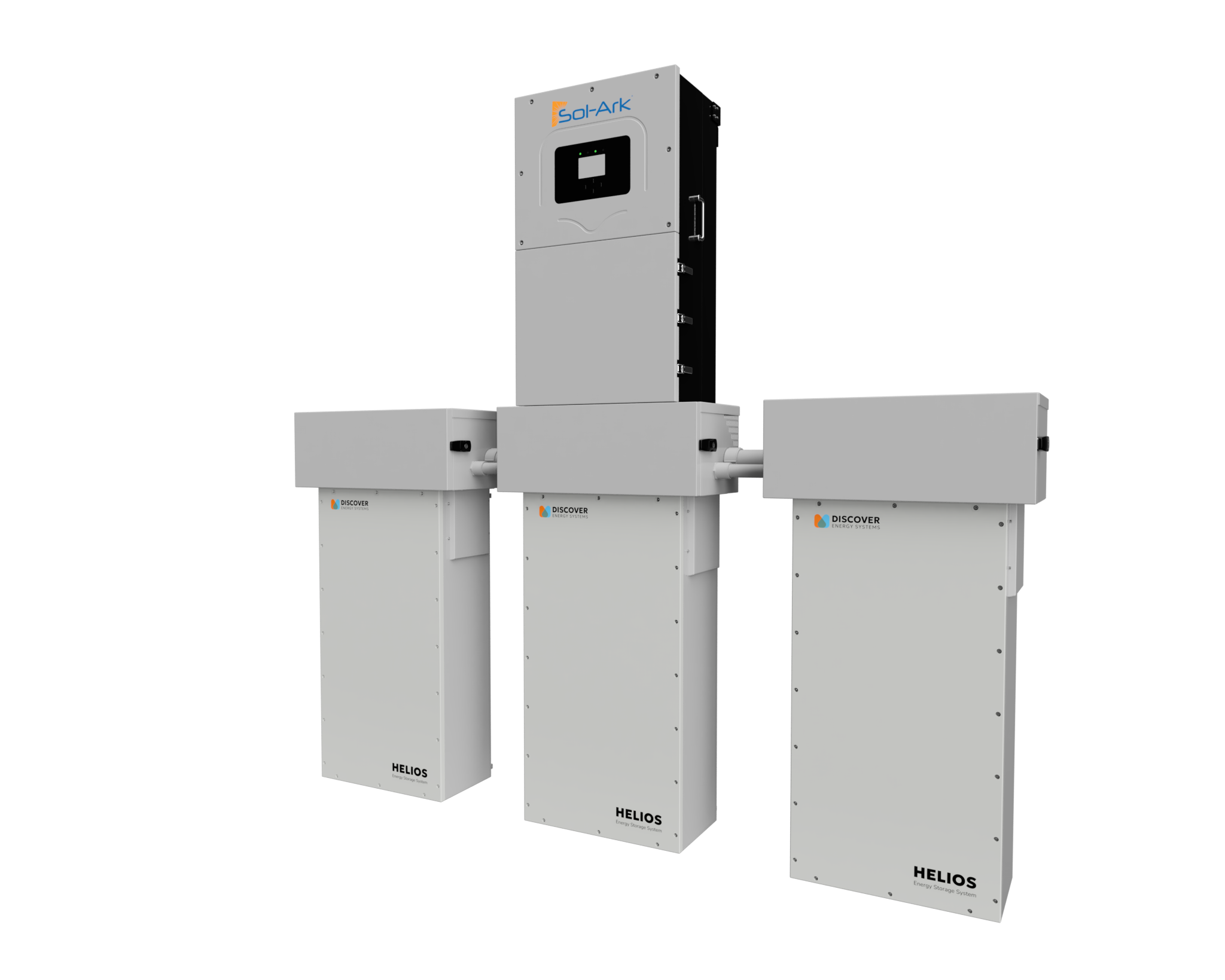

three HELIOS with 18K Sol-Ark
Why this counts Inverter battery charger is 185 A, one HELIOS delivers 200 A so you meet full charge/discharge capability. Inverter battery charger is 275 A, two HELIOS provide 400 A combined for full performance and surge headroom. Inverter battery charger is 350 A, two HELIOS provide 400 A combined for full performance; three recommended for heavy off-grid or large motor starts.
Usable energy at recommended configuration 16 kWh 32 kWh 32 to 48 kWh
Per-battery capability 16 kWh, 51.2 V, 314 Ah, 200 A charge and discharge, IP65 outdoor rated.

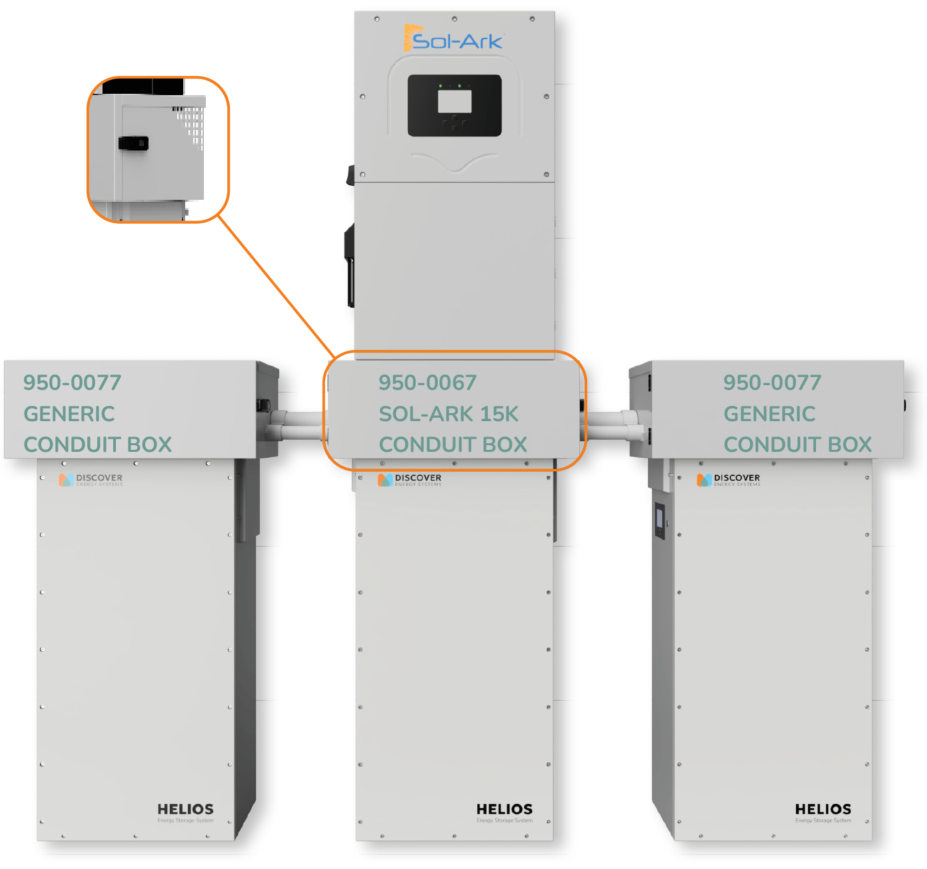

Simple & Flexible Installation Options

HELIOS ESS is designed for a clean, code-compliant install with Sol-Ark inverters. Installers can choose the wiring pathway that best suits the project:

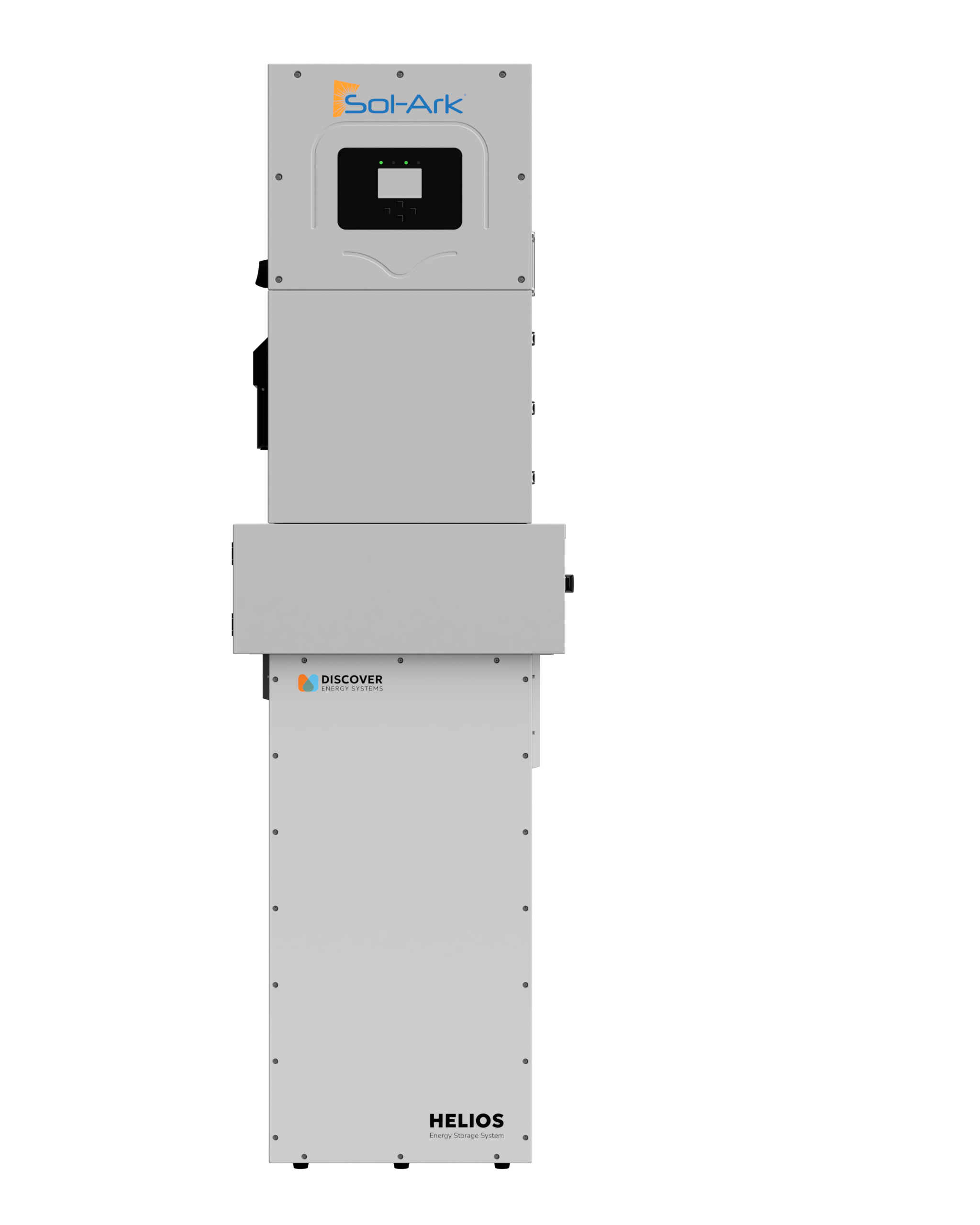

Sol-Ark Conduit Box. Purpose-built for Sol-Ark 15K, with knockouts and quick-connect points that align directly with the inverter for the fastest, neatest integration.
Discover Generic Wireway. A flexible option from Discover that allows installers to run battery cables and communication lines cleanly between HELIOS batteries and Sol-Ark other inverters or equipment while maintaining service access and code compliance.
Custom / Installer-Supplied Wireway. For projects with unique layouts, installers can supply their own wireway mounted over the battery to route and protect cabling, ensuring a tidy finish that matches site conditions.

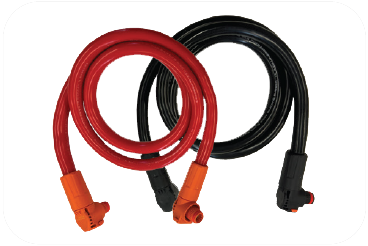

950-0068 PARALLEL BATTERY TO BATTERY CABLE SET

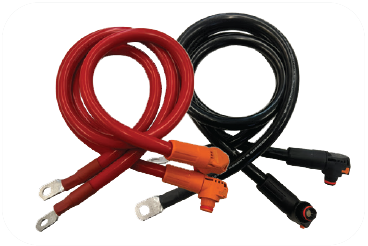

950-0070 BATTERY TO INVERTER CABLE SET

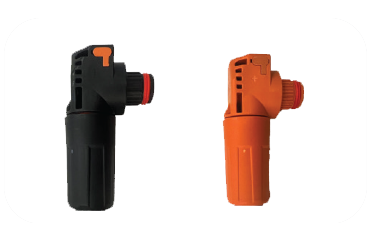

950-0072 BATTERY CONNECTOR SET


WHY CHOOSE THIS SOLUTION

The pairing of Discover HELIOS batteries with Sol-Ark hybrid inverters delivers unmatched performance for homeowners seeking whole-home backup and long-term energy independence. Where other solutions may compromise on value, scalability, or support, Discover + Sol-Ark stands apart.

HELIOS batteries provide 16.1 kWh of safe, UL-certified lithium storage, expandable as your needs grow, while Sol-Ark inverters deliver industry-leading AC output and intuitive TOU savings. Together they create a turnkey, installer-friendly system that is cost-effective, resilient, and scalable. Discover HELIOS batteries with Sol-Ark hybrid inverters are the smart choice for homeowners who want proven technology, trusted brands, and peace of mind for years to come.

True Whole-Home Backup

<5ms transfer speed ensures uninterrupted power.

Proven Reliability

UL-certified battery, UPS-grade inverter, certified Sol-Ark partner

Scalable Storage

16.1 kWh usable per battery, expandable up to 580kWh.

Fast, Clean Install

Dedicated conduit box, quick connect terminals, integrated LYNK II mount.

Energy Savings

Time-of-Use (TOU) shifting, generator support, EV readiness

Want to Learn More?

Contact us to get started designing your project with Discover + Sol-Ark.
