AES RACKMOUNT
ENERGY STORAGE SYSTEM

LiFePO4 Batteries

With LYNK Connectivity!
  • USD $ 1750 MSRP - Non Heated
  • USD $ 1800 MSRP - Heated

With 30% Federal Tax Credit

  • USD $ 1225 MSRP - Non Heated
  • USD $ 1260 MSRP - Heated

NOTICE TO CUSTOMERS

For customers with an AES RACKMOUNT Energy Storage System, please note that if your product has Firmware version 4.6 or higher, you must update your LYNK II with Firmware version 1.7 or higher.

Click here to download the latest AES RACKMOUNT Firmware.

Click here to download the latest LYNK II Firmware.

RELIABLE ENERGY STORAGE, SIMPLE CONFIGURATION AND QUICK INSTALLATION.

The AES RACKMOUNT Energy Storage System performs reliably, installs quickly and configures easily for Off-Grid Solar, Whole-Home Backup Power and Microgrids.

Stack up to six RACKMOUNT Battery Modules with the Quick Stack Rack and parallel them with a single RACKMOUNT Battery Combiner in under 40 minutes.

Or install up to six RACKMOUNT Battery Modules in a RACKMOUNT Slimline Enclosure in under 40 minutes for outdoor use.

The Slimline Enclosure with RACKMOUNT Battery Modules installed is UL9540 DC ESS certified, enabling permitting throughout North America.

Dramatically elevate battery charging performance by networking up to thirty-six RACKMOUNT Battery Modules in closed-loop communication with industry-leading low-voltage hybrid inverters.

.

FILTERS

Applications
Nominal Voltage
Open Circuit Voltage
Rated Ah Capacity (1C)
Nominal Energy (kWh)

About the AES RACKMOUNT System

Watch our video for a brief introduction to our newest 48V energy storage system design for off-grid, whole home backup and microgrid installations.


Optimize your Solar Installation with our Battery Sizing Tool

Easily estimate the number of batteries for your solar setup using our comprehensive solar calculator. By inputting your AC Load requirements, desired runtime, and number of inverters, our tool provides precise battery recommendations tailored to your unique installation needs. Ensure efficient energy storage and maximize your solar system's performance.


SIZE YOUR BATTERY SYSTEM NOW!

AES RACKMOUNT Battery Module

AES RACKMOUNT Battery Modules are manufactured with the highest-grade cobalt-free LiFePO4 cells for safety, reliability and long life. The high-current GEN-4 BMS delivers superior peak power for demanding load support and lightning-fast 1C charge and discharge rates.

Networking AES RACKMOUNT Battery Modules with the LYNK II Gateway enables plug-and-play closed-loop communication with industry-leading hybrid inverters and dramatically elevates charging performance.

AES RACKMOUNT Battery Modules are available with a BMS-managed heat mat for operation in cold climates.



DOWNLOAD SELL SHEET

AES Rackmount Product Features

Image Overlay

LYNK Port

  • Connects battery string to LYNK Gateway
  • Multi-battery BMS communication

Image Overlay

High Current BMS

  • Field serviceable BMS
  • Plug-and-Play system-wide BMS communication
  • Sets Voltage, broadcasts SOC and temperature

Image Overlay

LYNK ACCESS

  • Configure LYNK device
  • Monitor Discover Lithium batteries
  • Troubleshoot Discover Lithium batteries
LYNK ACCESS NETWORKING SUPPORT

Closed-Loop Inverter Partners

  • Up To 180 kWh (per LYNK)
  • Linear Scaling of Charge, Discharge, Peak Capacity
  • Up to 2.2C Peak Power
  • Up to 1C continuous charge/discharge
  • Up to 40% Faster Recharge from 0% to 100% SoC
  • Real-Time Optimization of the Charge Rate
  • 1C Continuous Charge Rate, Regardless of SoC
  • 2x Faster than C/2 Rated Lithium Batteries
  • 10x the Life of Lead-Acid (BCI-06)
  • 10-Year Warranty and Energy Performance Guarantee
  • 2x Runtime of Lead-Acid
  • 100% usable capacity
  • Up to 50% more energy efficient than a lead-acid battery
  • Up to 98% round-trip efficiency

How do I work with Discover Energy Systems?

Discover sells through solar industry distributors and installers. We do not sell directly to homeowners.

If you’re a solar industry professional tell us about yourself and a member of our sales team will reach out to you shortly.

We want to hear from you.

Our global sales team, located in major centres around the world, is standing by to provide guidance and advice as well as answer specific questions about all of your unique applications.

GLOBAL HEADQUARTERS
#7-13511 Crestwood Place, Richmond, BC Canada V6V 2E9
Tel: +1-778-776-3288   Fax: 604-248-0175



Get in Touch

COMPARE AES RACKOUNT TO COMPETITORS

Heated Module Available
UL 9540 With Any
UL1741SB Inverter
BMS In Each Battery
1 C Charge & Discharge
2.2 C Surge
Dynamic Charging
(Up To 40% Faster Charging)

Dynamic Top Balancing
Auto Master/Slave Programming
Built-In Breaker
Downloadable Diagnostics
Field Serviceable

AES RACKMOUNT

icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line

EG4 LIFEPOWER4

icon icon-check-mark-line
icon icon-x-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-x-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line

EG4-LL-S

icon icon-check-mark-line
icon icon-x-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-x-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line

FORTRESS eFLEX

icon icon-check-mark-line
icon icon-x-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-x-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line

FORTRESS eFLEX MAX

icon icon-check-mark-line
icon icon-check-mark-line
icon icon-x-line
icon icon-check-mark-line
icon icon-x-line
icon icon-x-line
icon icon-x-line
icon icon-check-mark-line
icon icon-x-line
icon icon-x-line
icon icon-x-line

PLYLONTECH US5000-B

icon icon-check-mark-line
icon icon-x-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-x-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line

PYTES E-BOX

icon icon-check-mark-line
icon icon-x-line
icon icon-check-mark-line
icon icon-x-line
icon icon-x-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-x-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line

PYTES V5

icon icon-check-mark-line
icon icon-x-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-x-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line

SIMPLIPHI 3.8

icon icon-check-mark-line
icon icon-x-line
icon icon-check-mark-line
icon icon-x-line
icon icon-x-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line
icon icon-check-mark-line

AES RACKMOUNT Product Registration

The AES RACKMOUNT LiFePO4 product family offers an industry-leading warranty for years of trouble-free, high-performance operation.

Click on the REGISTER PRODUCT button and use the form to register your product(s) to validate your warranty.


REGISTER PRODUCT

LYNK ACCESS PC Software

  • Configure LYNK Device
  • Monitor Discover Lithium Batteries
  • Troubleshoot and monitor Discover Lithium batteries
  • Simulate and validate integration of Discover Lithium Batteries
LYNK ACCESS
LYNK NETWORK SUPPORT
LYNK ACCESS DEVELOPER PAGE

AES RACKMOUNT Components

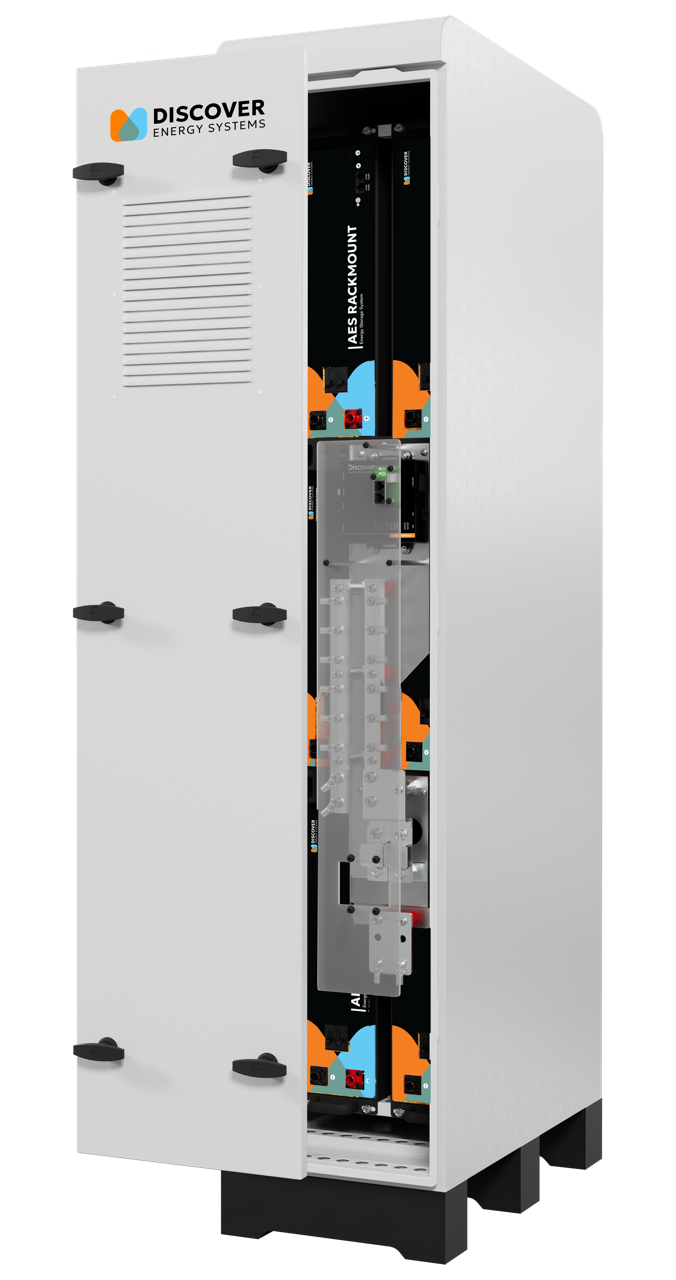

AES RACKMOUNT Slimline Enclosure 950-0053

  • Indoor, Outdoor
  • Battery Combiner
  • Battery Cables
  • Closed-Loop Comms
  • Parallel 180 kWh
  • UL 9540 DC ESS Certified*
  • Seismic AC 156*

* When installed using the AES Slimline Enclosure 950-0053

Discover Energy Systems reserves the right to adjust this product without notice or obligation. The image shown is for reference use only, and models may vary from those displayed.


VIEW SELL SHEET

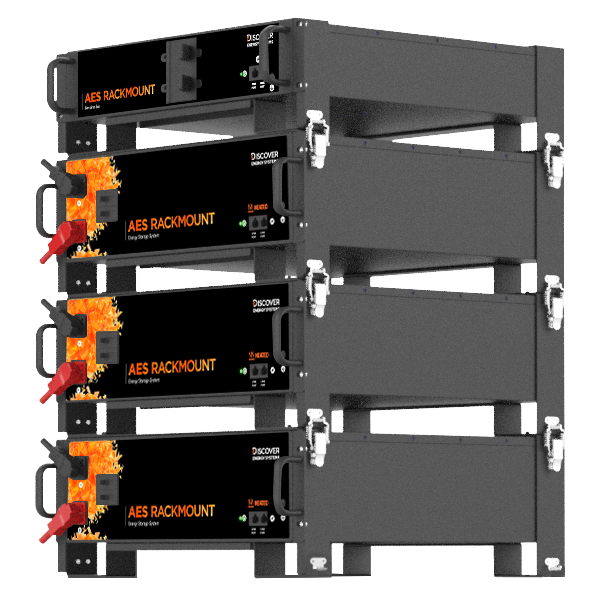

AES RACKMOUNT Quick Stack Rack 950-0050

An open battery stacking system that is flexible, secure, and set up in only a few minutes.

  • Stack up to six battery modules and a battery module combiner
  • Brackets interlock without tools
  • Facilitates air gap between batteries, reducing heat transfer
  • This installation method is not certified to UL9540


View Sell Sheet

AES RACKMOUNT Battery Module Combiner 950-0049

Parallel up to six AES RACKMOUNT Battery Modules with a single AES RACKMOUNT Battery Combiner.

  • Fully assembled
  • 19-inch rackmount - enclosure ready
  • Six quick-connect fused battery cable sets
  • Master double pole disconnect breaker
  • Single button power off


VIEW SELL SHEET

Accessories

LYNK II - 950-0025

Advanced Integration - Faster Charging

Unlock the full potential of an AES RACKMOUNT LiFePO4 Solar Stationary battery by enabling the BMS to optimize and dynamically manage the charge configurations of the world’s best industrial chargers and mobile inverter-chargers. The LYNK PORT on each AES RACKMOUNT LiFePO4 allows for real-time closed-loop communication between multiple batteries and with a charger, or inverter-charger, using LYNK II to aggregate and communicate the State of Charge.


LEARN MORE

SurLok Plus Connector Kit - 950-0054

For installers wishing to install AES RACKMOUNT modules with their own wiring, this kit is available with both DC positive and negative connectors.


Cable Kit - 950-0055

For installers not wishing to use the AES RACKMOUNT combiner, this cable kit includes both DC positive and negative wires with SurLok Plus connectors and ring terminals. These cables are 3 AWG and measure 2 meters in length.



SurLok Plus Connector Kit - 950-0054

For installers wishing to install AES RACKMOUNT modules with their own wiring, this kit is available with both DC positive and negative connectors.


LEARN MORE

Login Form

Related Resources
Application Notes
CAD Files

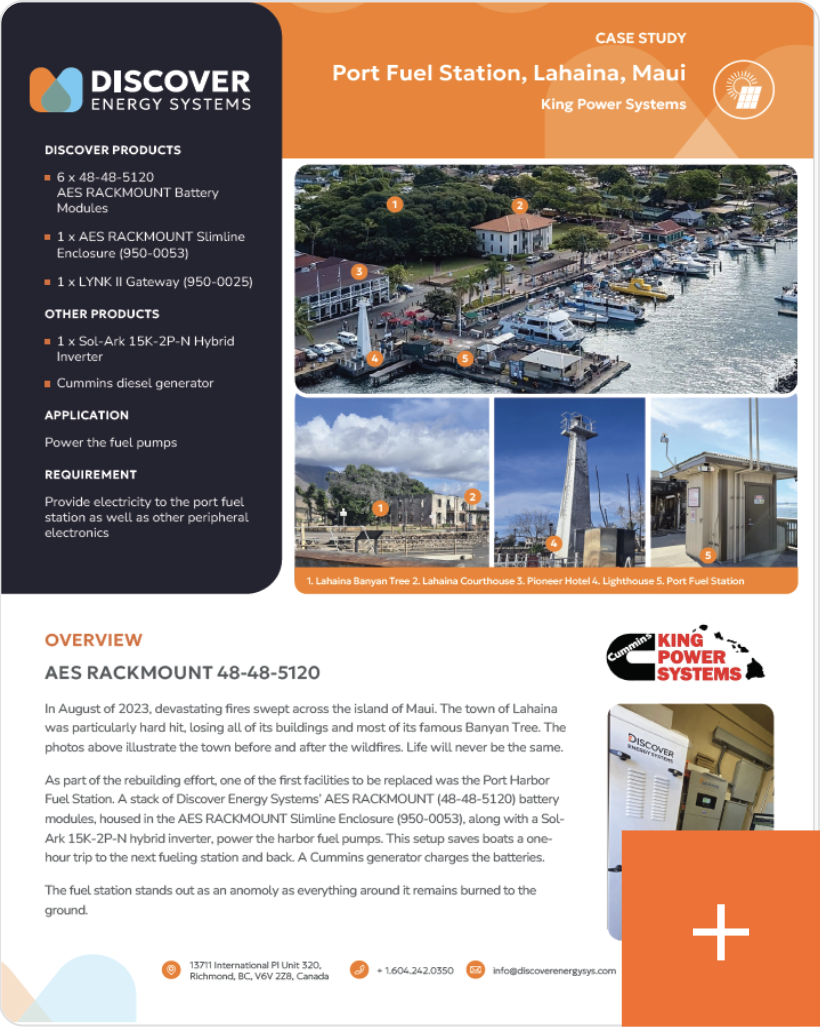

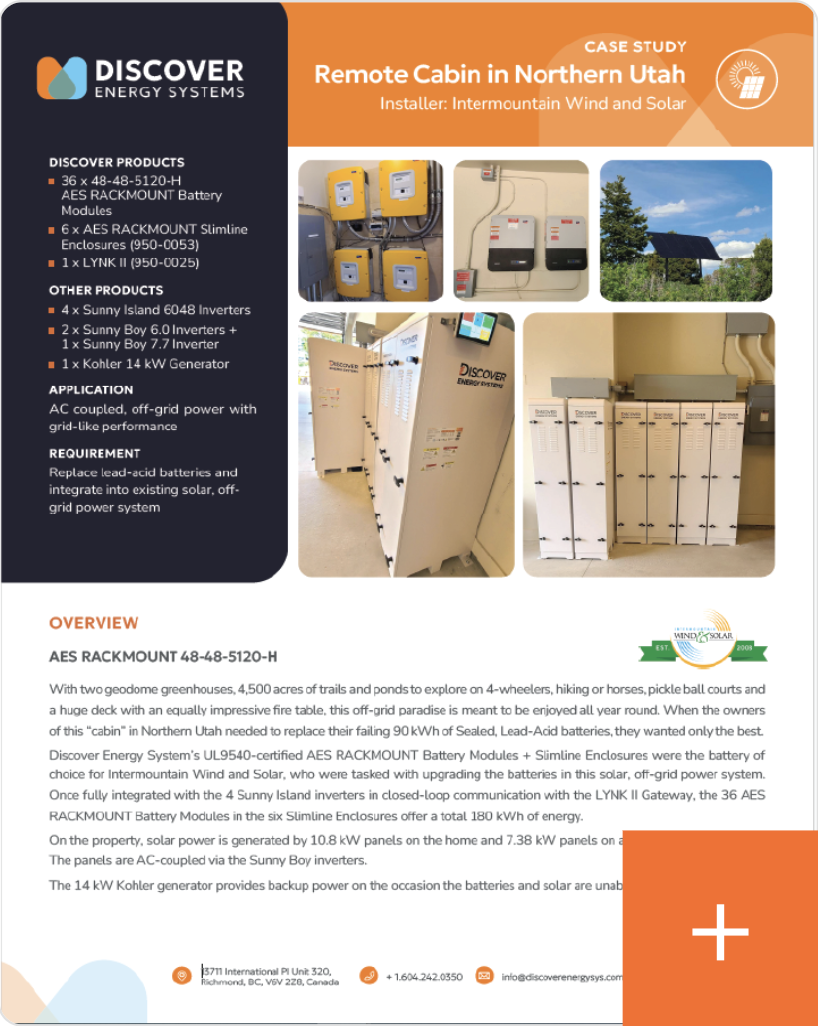

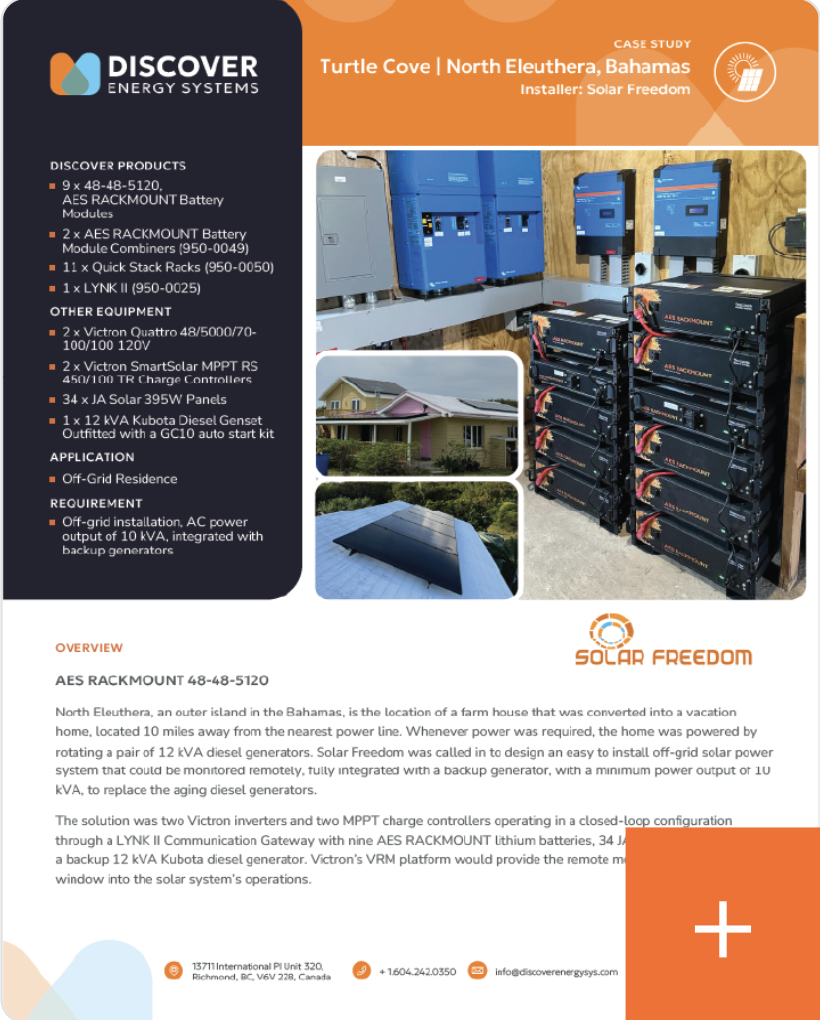

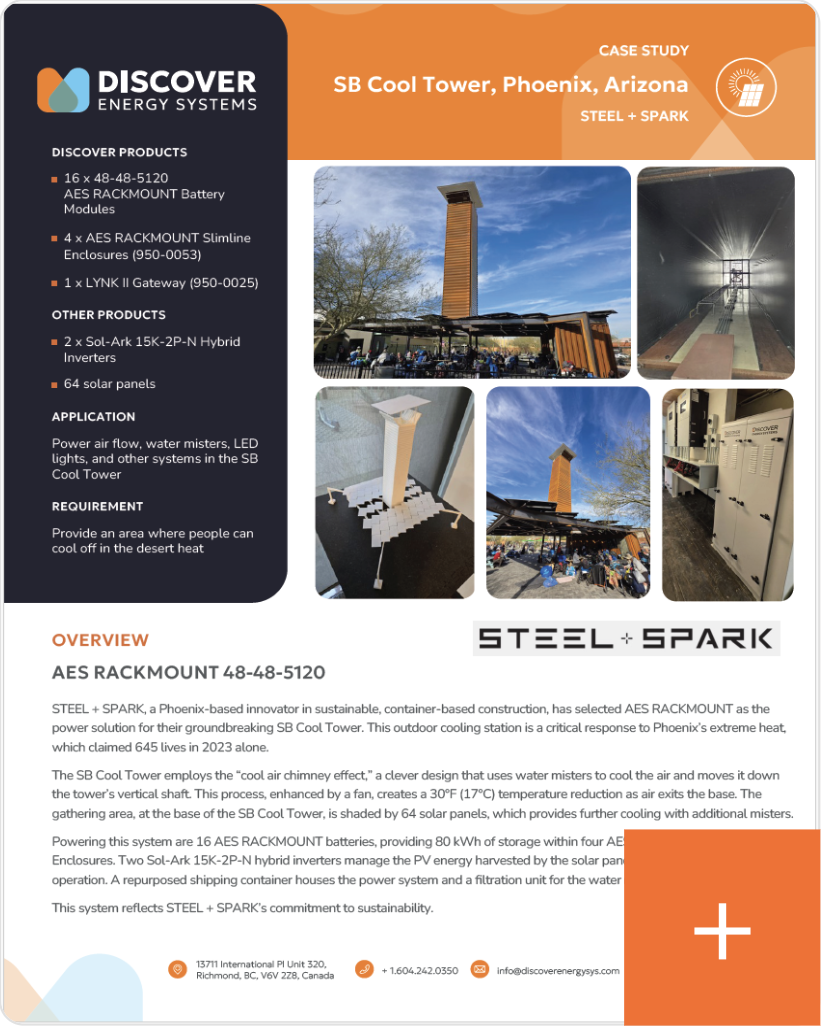

Case Study
