COMMERCIAL HIGH VOLTAGE PACKS & RACKS
Packs and Racks (with optional Thermal Management System)
Discover’s modular rack-mounted ESS platforms let OEMs build customizable, energy-storage systems for controlled environments or with an optional thermal management system (TMS) for liquid cooling/heating. Certified to UL 9540A, UL 1973, and IE C, each module delivers global safety and reliability. A unified mechanical and electrical interface streamlines design, service, and integration, reducing complexity and accelerating time-to-market for OEM energy-storage solutions.
Applications
High-Voltage DC Foundations. High-voltage DC building blocks using external DC/DC or DC/AC conversion.
Modular Microgrid & Industrial Blocks. Modular energy units for containerized microgrids, hybrid gensets, EV-charging buffers, and industrial peak-shaving systems.
High-Density Grid Support Storage. Dense storage for grid-tied or islanded systems for grid-forming or grid-support functions.
HV Packs for DC Bus Architectures. HV packs for DC bus architectures in power cabinets, traction support, and stationary power conversion.
Mission-Critical DC Power Subsystems. Scalable subsystems for UPS, data-center backup, telecom power, and other mission-critical DC uses.
Features
High Energy Density, delivering maximum kWh per rack footprint. Scalable Architecture to meet system-level power and capacity targets.
High Efficiency. Up to 95% round-trip efficiency for DC charge and discharge.
Integrated Fire Protection. Embedded suppression in packs and IO compatibility for external fire systems.
Flexible Communications. Supports PCS, SCADA, and EMS through CAN or Modbus interfaces.
Long Service Life. Engineered for a 20-year design life with simplified maintenance.
PAR Rack Systems Specifications
| Feature | PAR-106 | PAR-160 | PAR-210 | PAR-266 | PAR-318 | PAR-372 | PAR-426 |
|---|---|---|---|---|---|---|---|

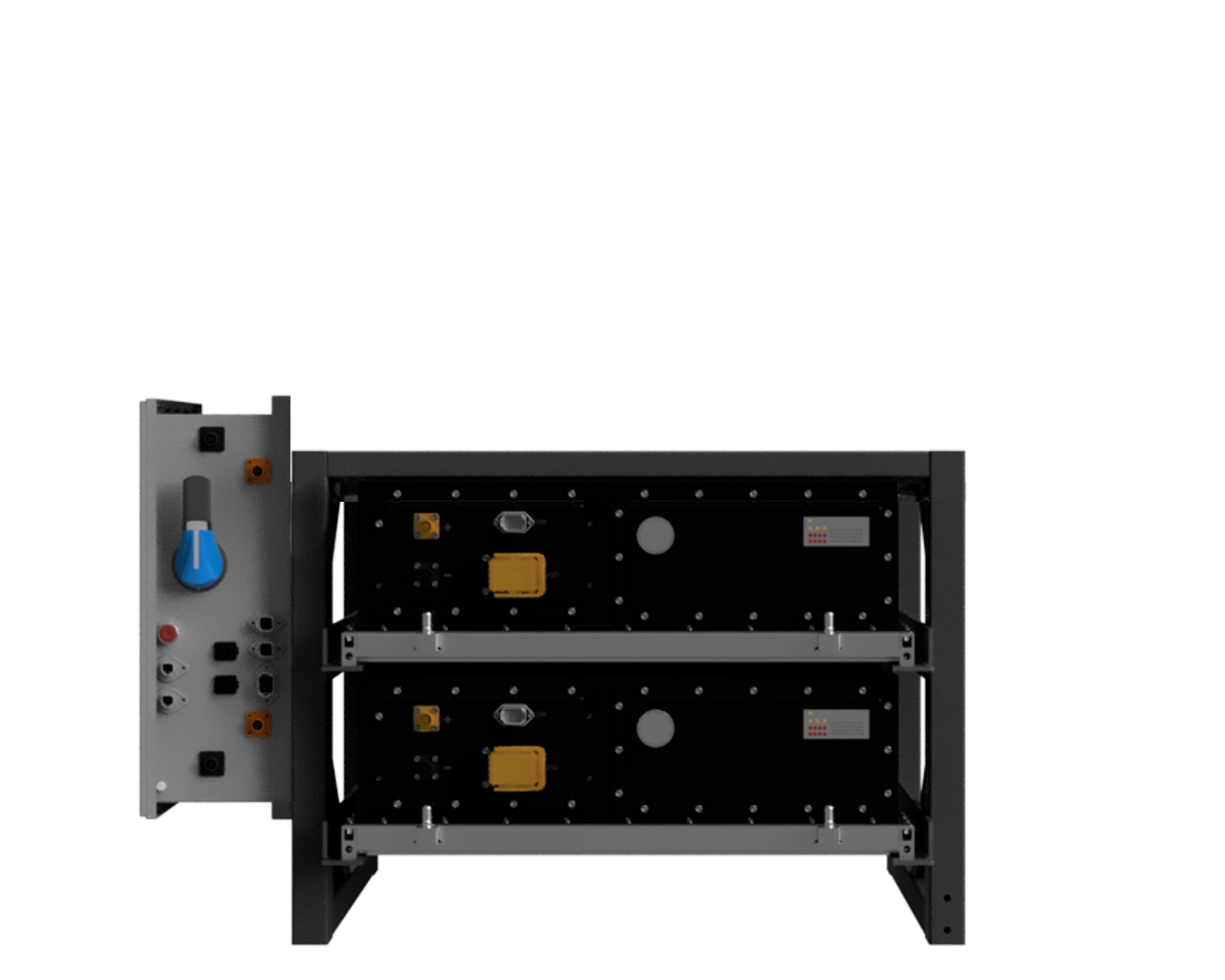

| Pack/Rack Configuration |  104S1P (2 packs @ 52S1P) |

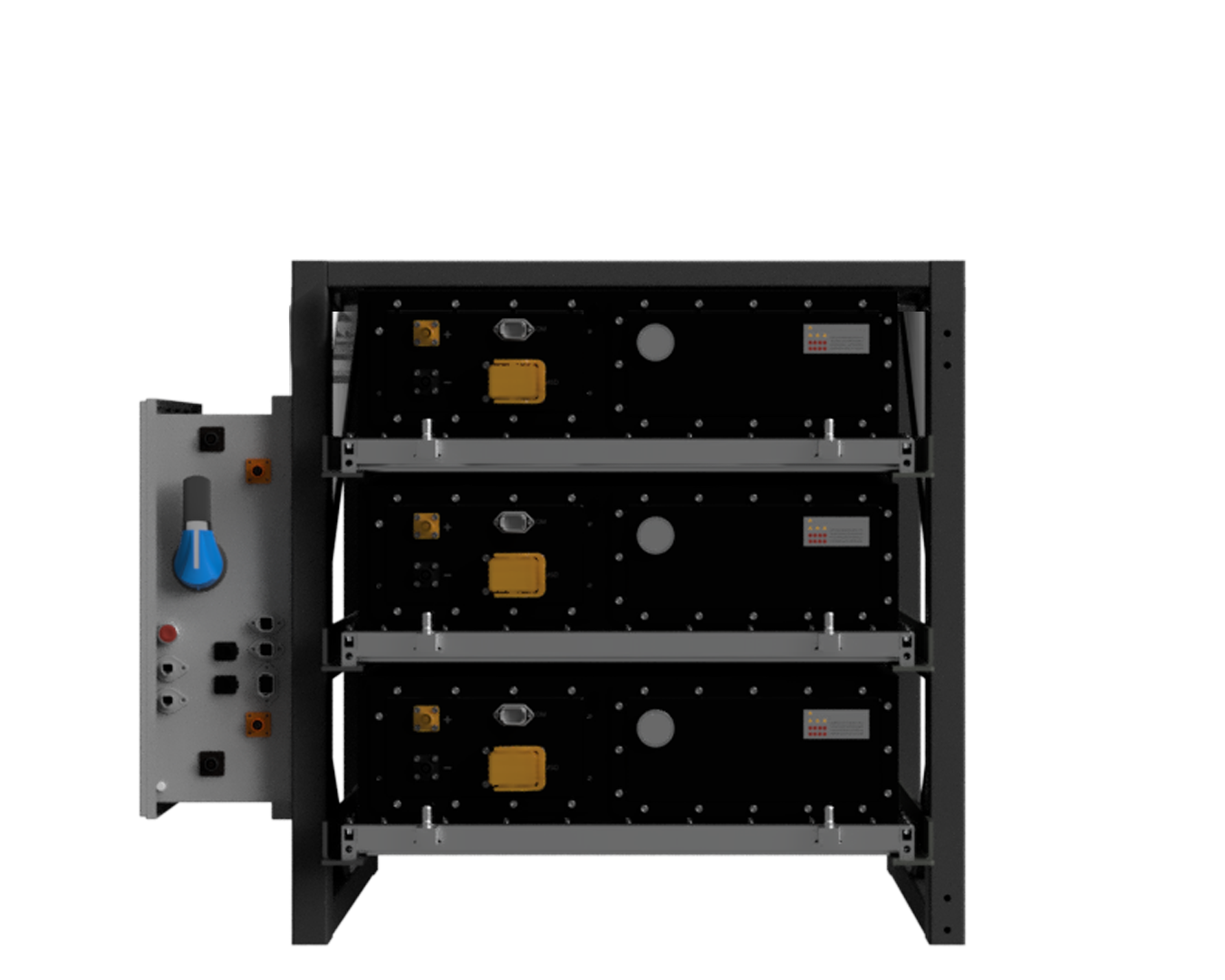

 156S1P (3 packs @ 52S1P) |

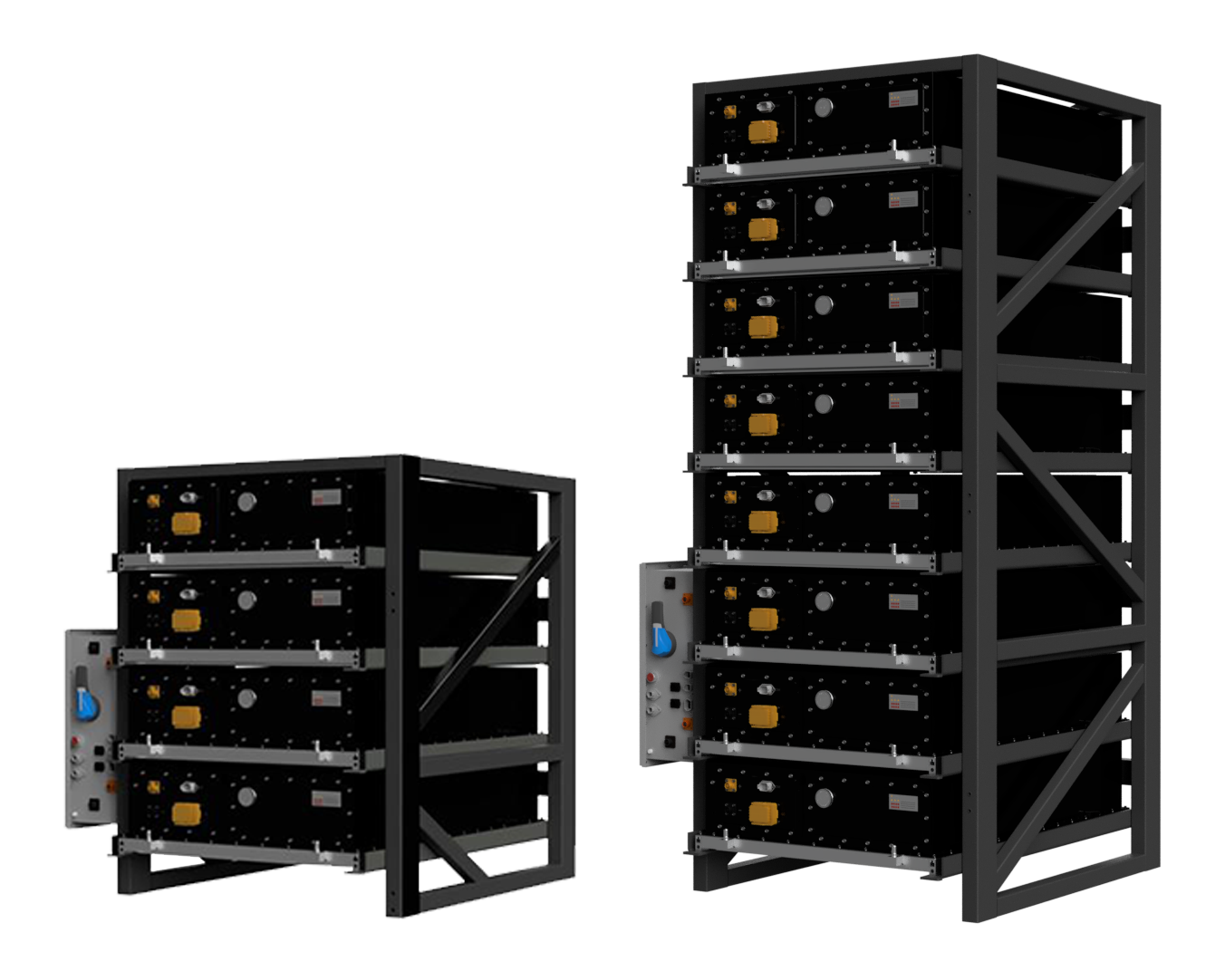

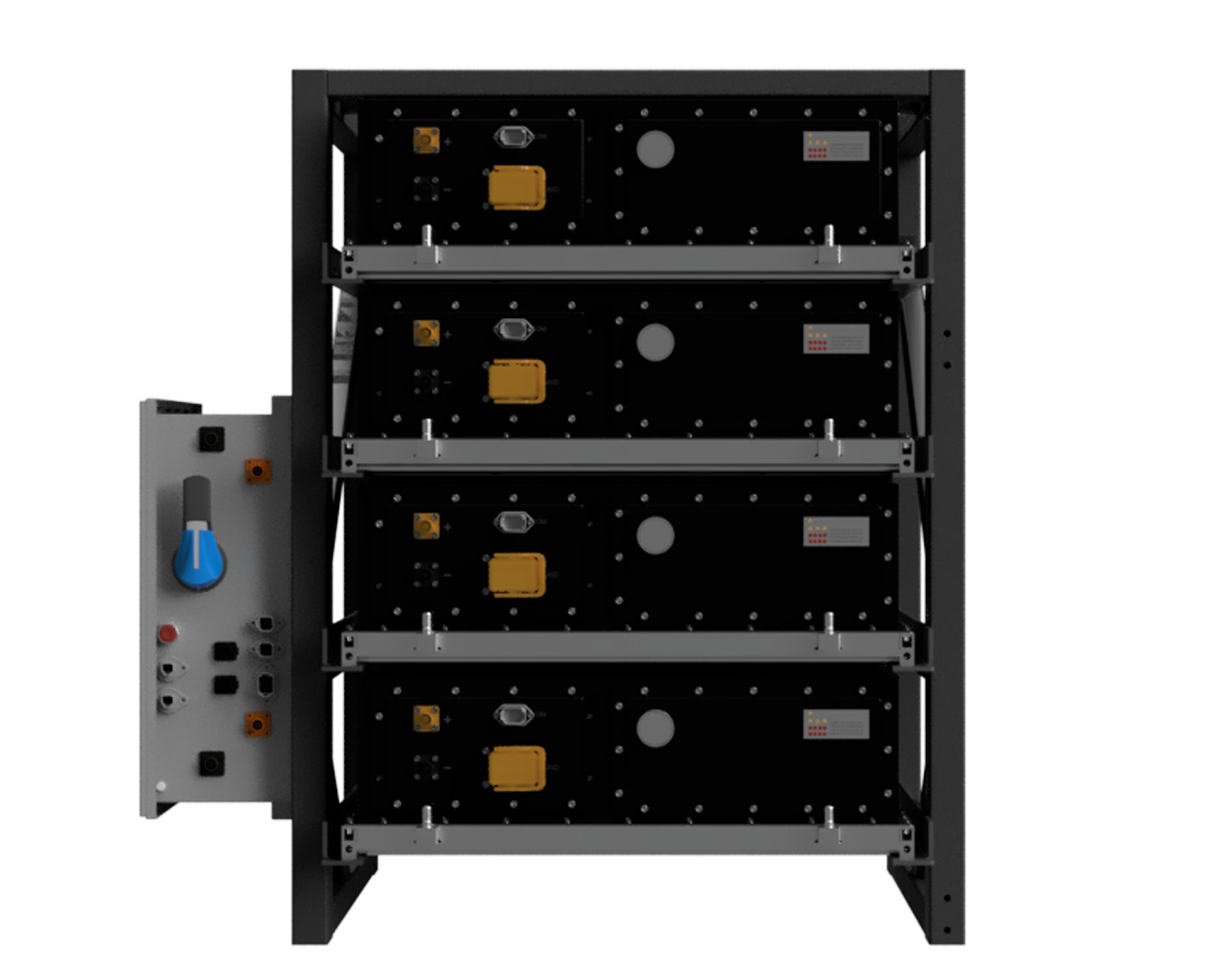

 208S1P (4 packs @ 52S1P) |

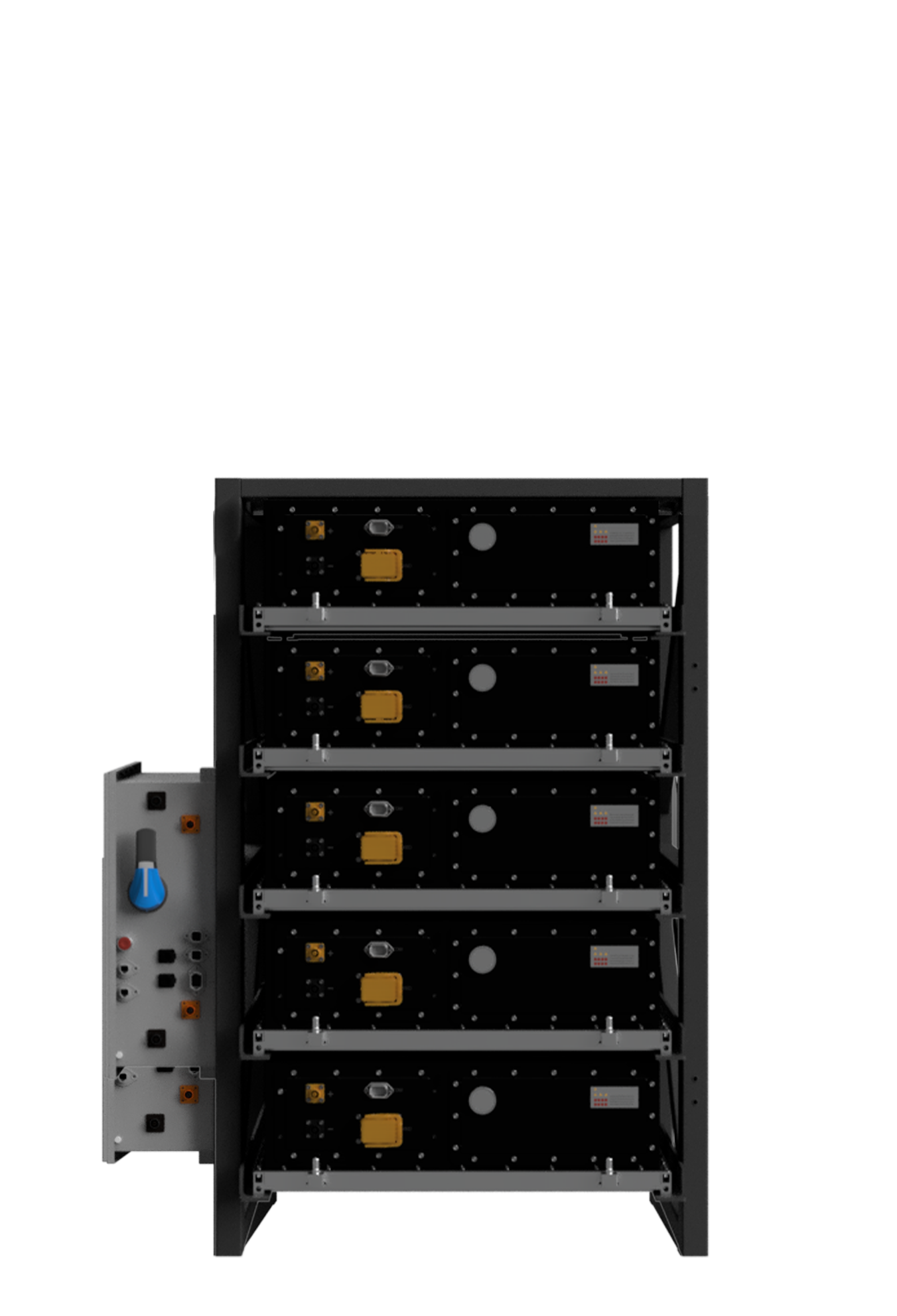

 260S1P (5 packs @ 52S1P) |

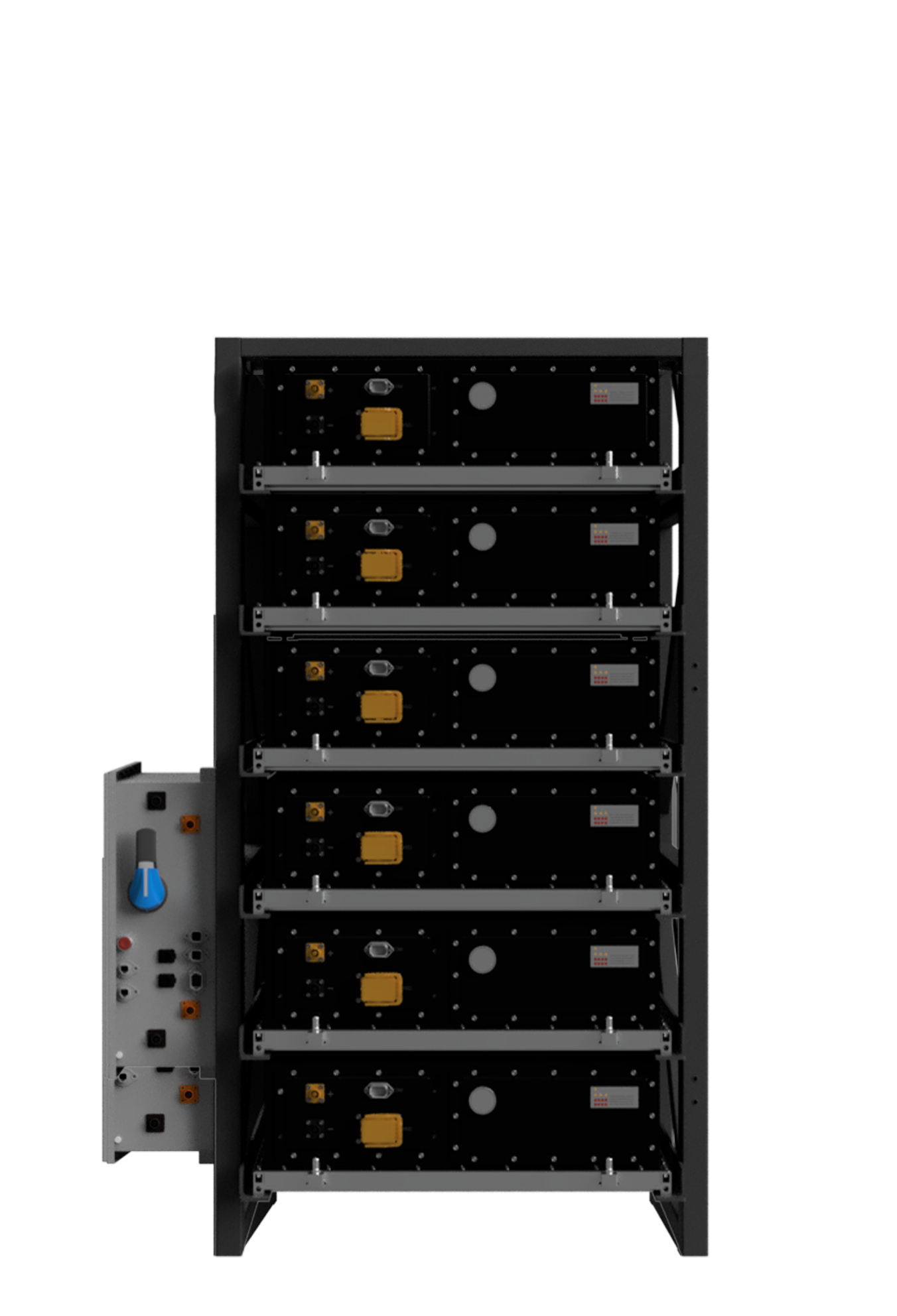

 312S1P (6 packs @ 52S1P) |

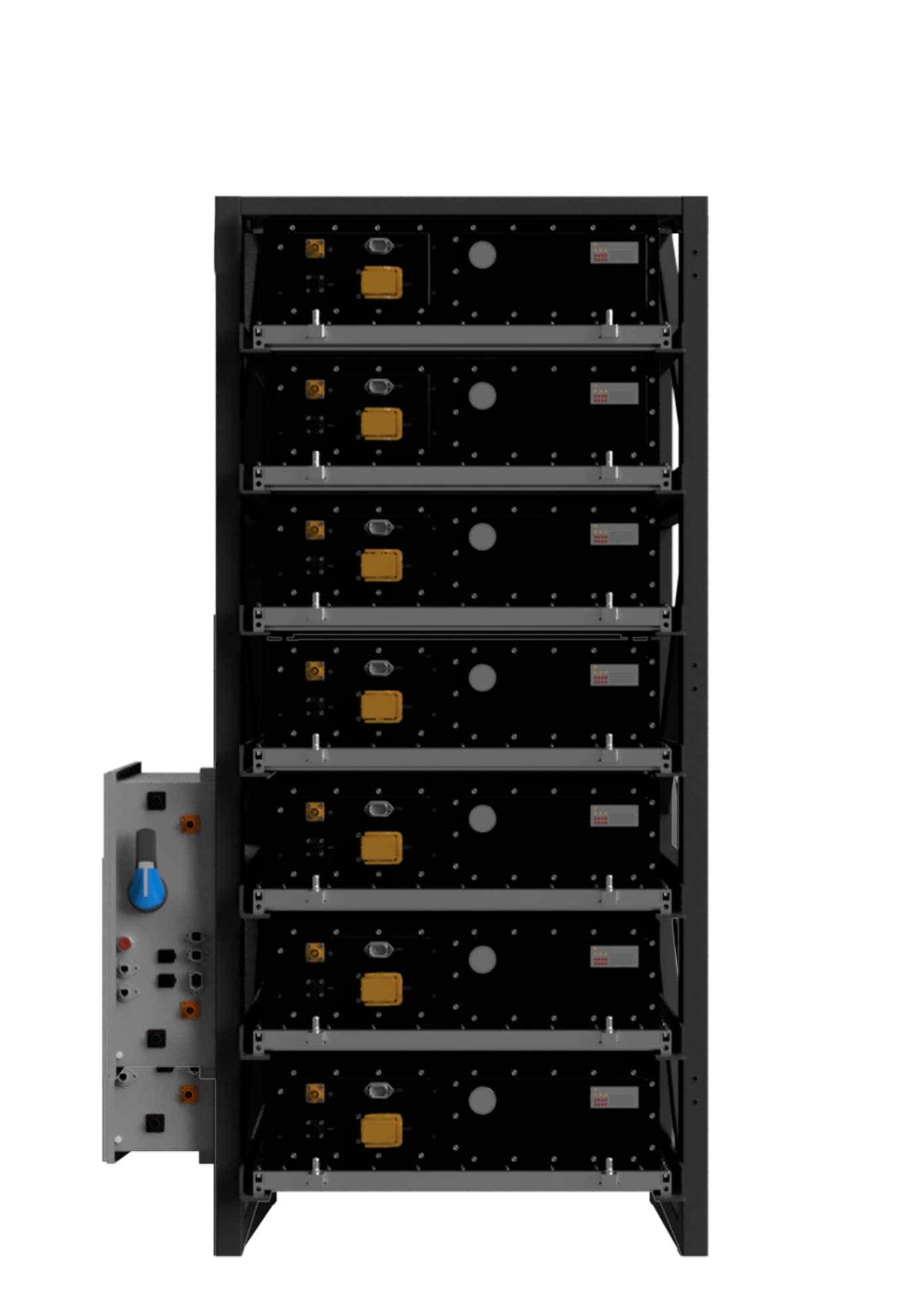

 364S1P (7 packs @ 52S1P) |

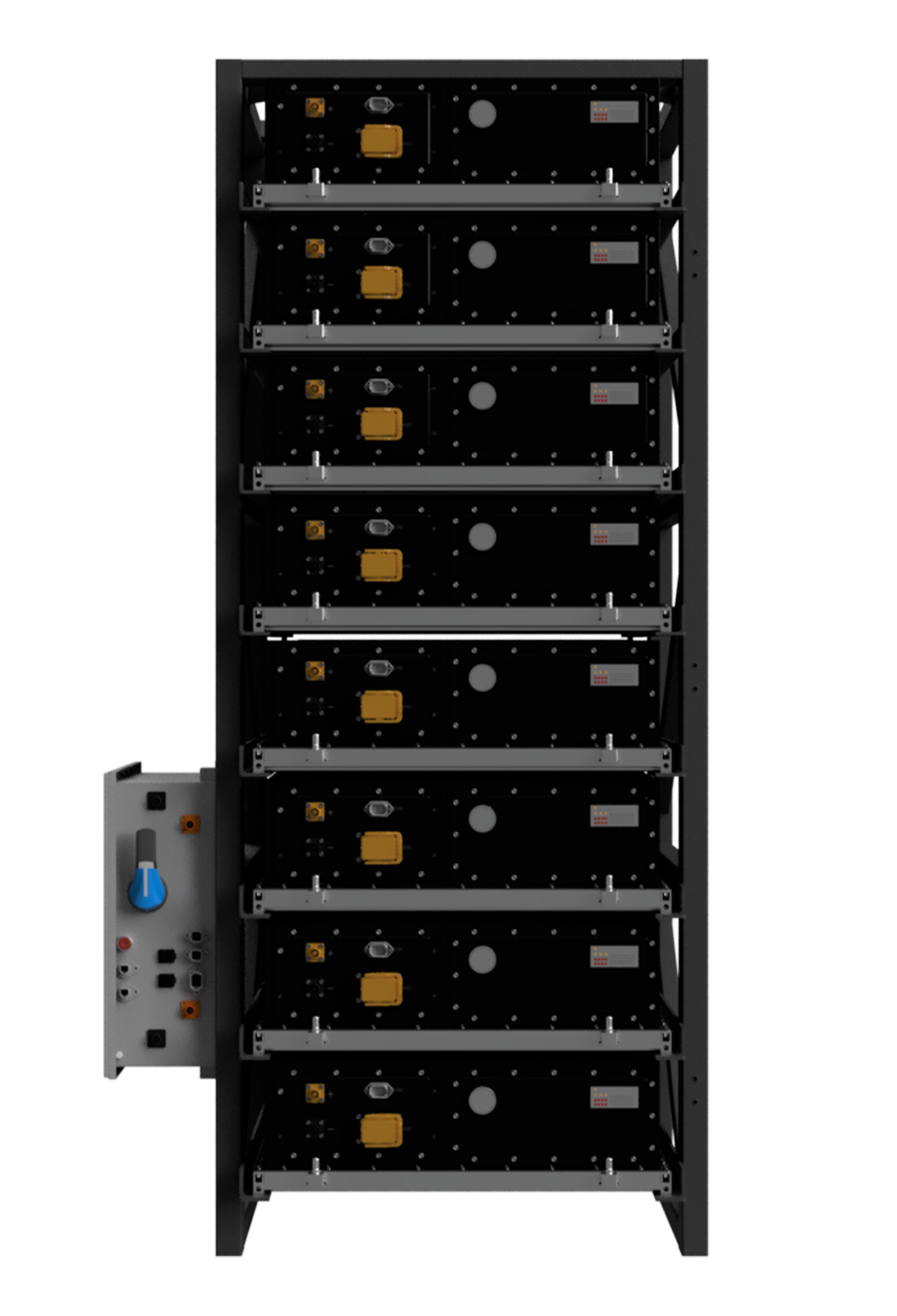

 416S1P (8 packs @ 52S1P) |
| Battery Chemistry | Lithium Iron Phosphate | ||||||
| Nominal Energy Capacity | 106 kWh | 160 kWh | 212 kWh | 266 kWh | 318 kWh | 372 kWh | 426 kWh |
| Usable Energy Capacity | 104 kWh | 157 kWh | 209 kWh | 261 kWh | 313 kWh | 366 kWh | 418 kWh |
| Battery Max. Continuous Power | 52 kW | 79 kW | 104 kW | 131 kW | 157 kW | 183 kW | 209 kW |
| Round-trip Efficiency | 94% (25°C, 0.5C) | ||||||
| System Nominal Voltage | 332.8 V | 499.2 V | 665.6 V | 832.0 V | 998.4 V | 1164.8 V | 1331.2 V |
| System Operating Voltage | 312–358.8 V | 468–538.2 V | 624–717.6 V | 780–897 V | 936–1,076.4 V | 1,092–1,255.8 V | 1,248–1,435.2 V |
| Nominal Cell Capacity | 320 Ah | ||||||
| Usable Cell Capacity | 314 Ah | ||||||
| Max. Continuous Current | 157 A (C/2) | ||||||
| Max. Operating Voltage Range | 0.5C | ||||||
| Internal Fuse Rating | 315 A | ||||||
