AES CABINET
OUTDOOR C&I ENERGY STORAGE
Customizable BESS solution to be pair with your choice of PCS and EMS.
AES CABINET
The AES Cabinets integrate with numerous C&I PCS for customized configurations
Dynapower, Sinexcel and more to come.
This cabinet-based BESS delivers robust performance in smaller footprints
ideal for commercial, industrial, and distributed energy projects—providing the versatility needed for industrial self-consumption, grid stabilization, microgrid/off-grid support, and EV charging
Residential Buildings
Commercial Offices
EV Charging Stations
Restaurants, Convenience & Grocery Stores
Banks, Pharmacies &
Schools
Data Centers, Warehouses & Industrial Facilities
A compact, modular cabinet solution engineered for 1500 VDC or lower applications. Designed for seamless integration with a wide range of advanced Power Conversion Systems (PCS), it offers a flexible, scalable approach to energy storage.
Industrial Self-Consumption (Arbitrage)Store energy during low demand or high renewable output, discharge during peak demand, and cut grid reliance. | Grid StabilizationDeliver rapid-response storage to balance supply-demand, stabilize frequency, and integrate renewables. |
Microgrid & Off-Grid SupportPower microgrids with reliable storage, ensuring energy for remote areas and outages. | EV Charging SupportStore energy and manage loads to expand EV infrastructure while easing grid strain. |
PRODUCT FEATURES
Space-efficient cabinet form factor with optimized thermal management.
Configurable to meet various power and capacity requirements, easily expanded as needed.
Achieves up to 94% round-trip efficiency (RTE) for DC charge/discharge.
UL1973 Certified, UL9540A tested and UL9540 DC ESS (3rd Edition) other relevant standards, ensuring a high level of safety and reliability.
Incorporates temperature and smoke detection; with active fire suppression and controlled ventilation.
Fully compatible with third-party PCS, SCADA, and EMS systems, enabling tailored system architectures.
Engineered for a 20-year service life, designed for easy maintenance and serviceability.
Compact enclosure reduces footprint, simplifies installation, and speeds project timelines.
AES Cabinet System Specifications

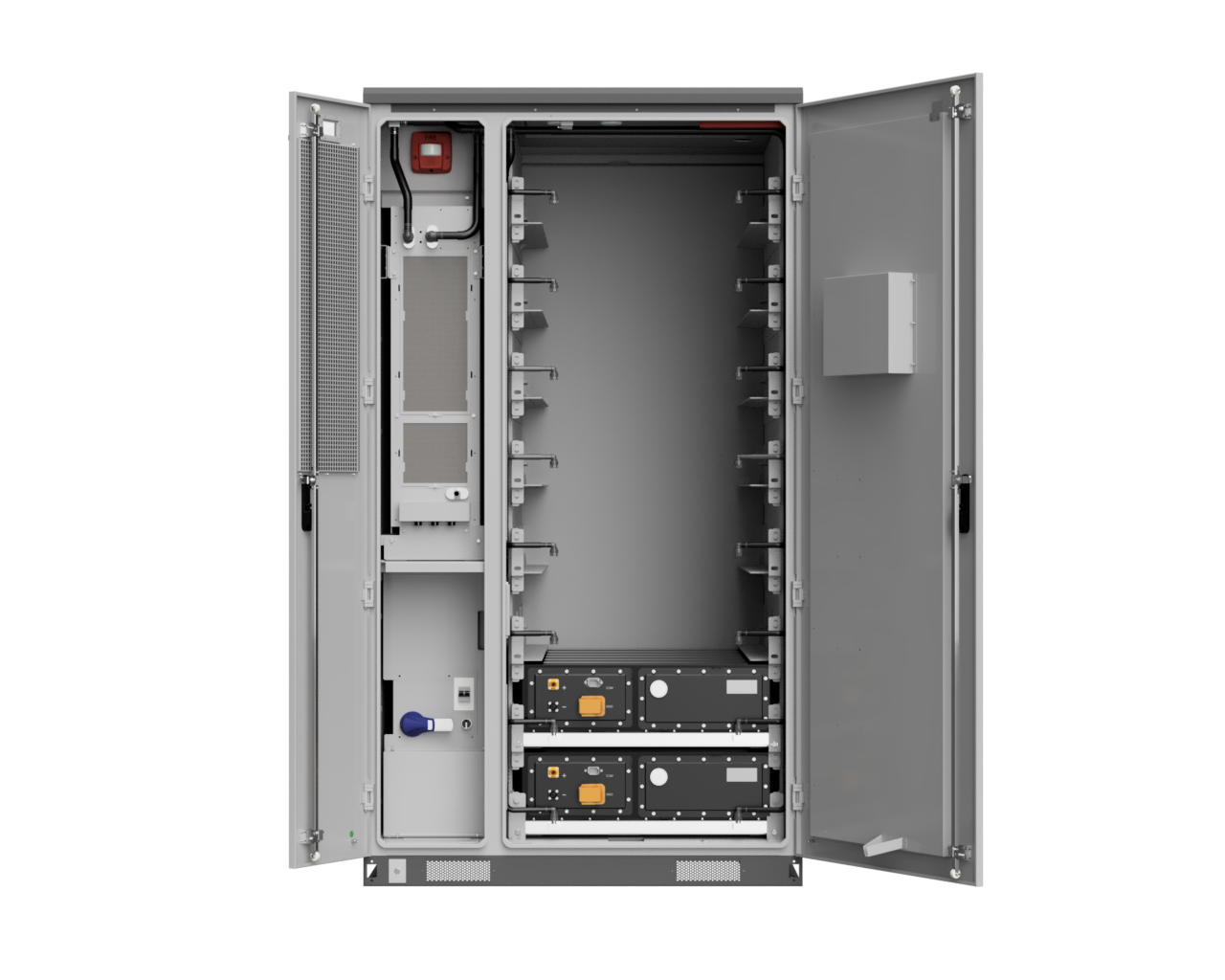

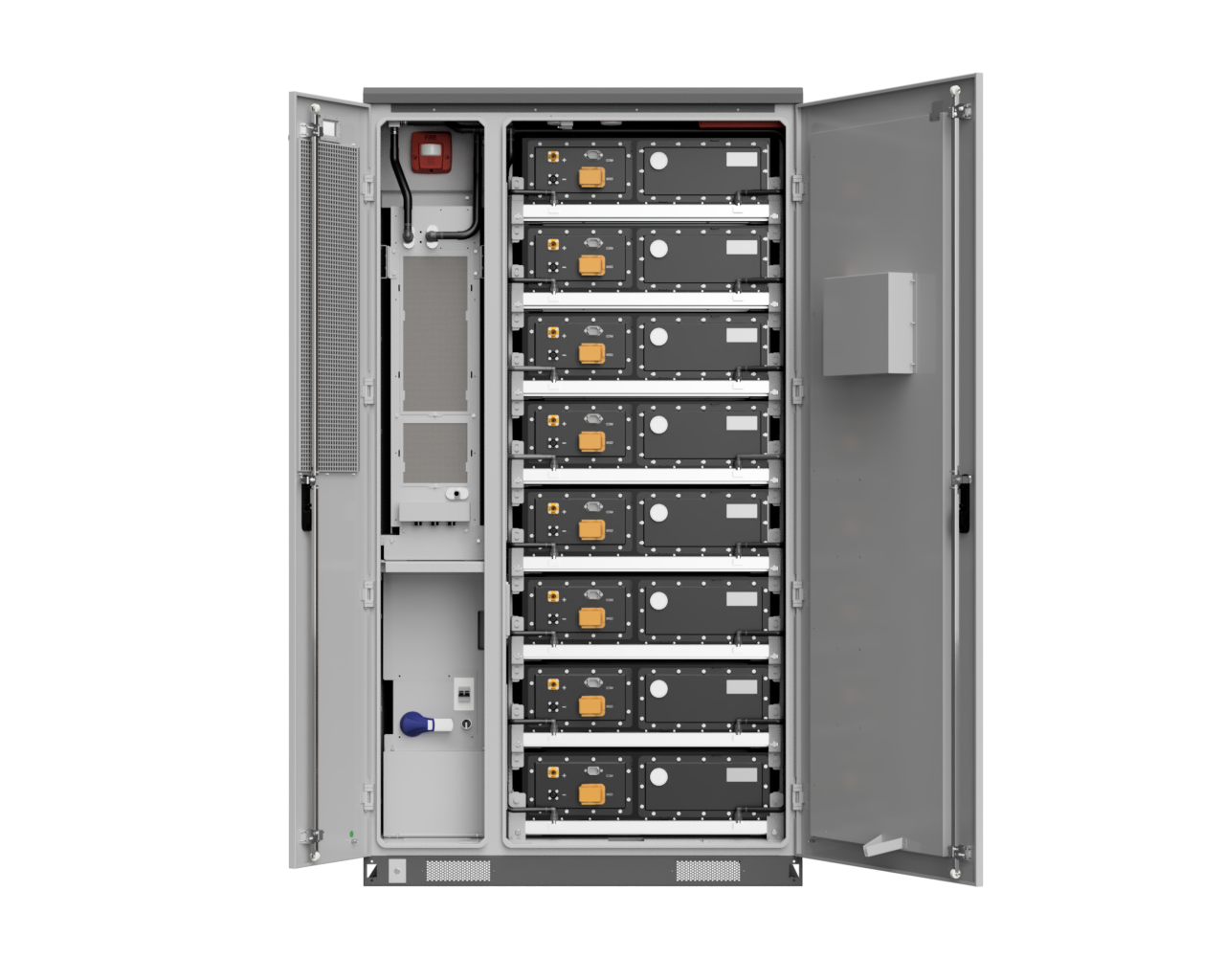

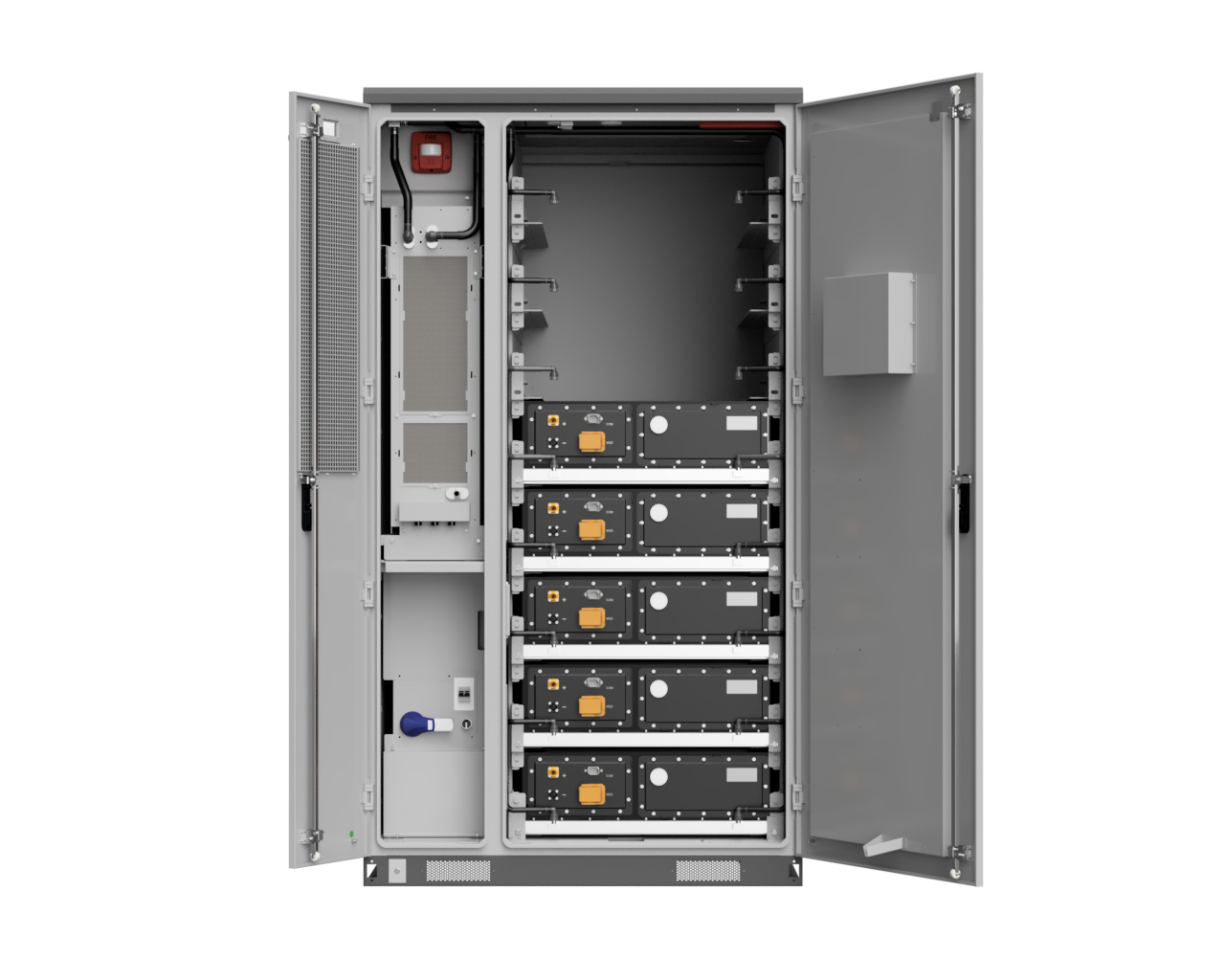

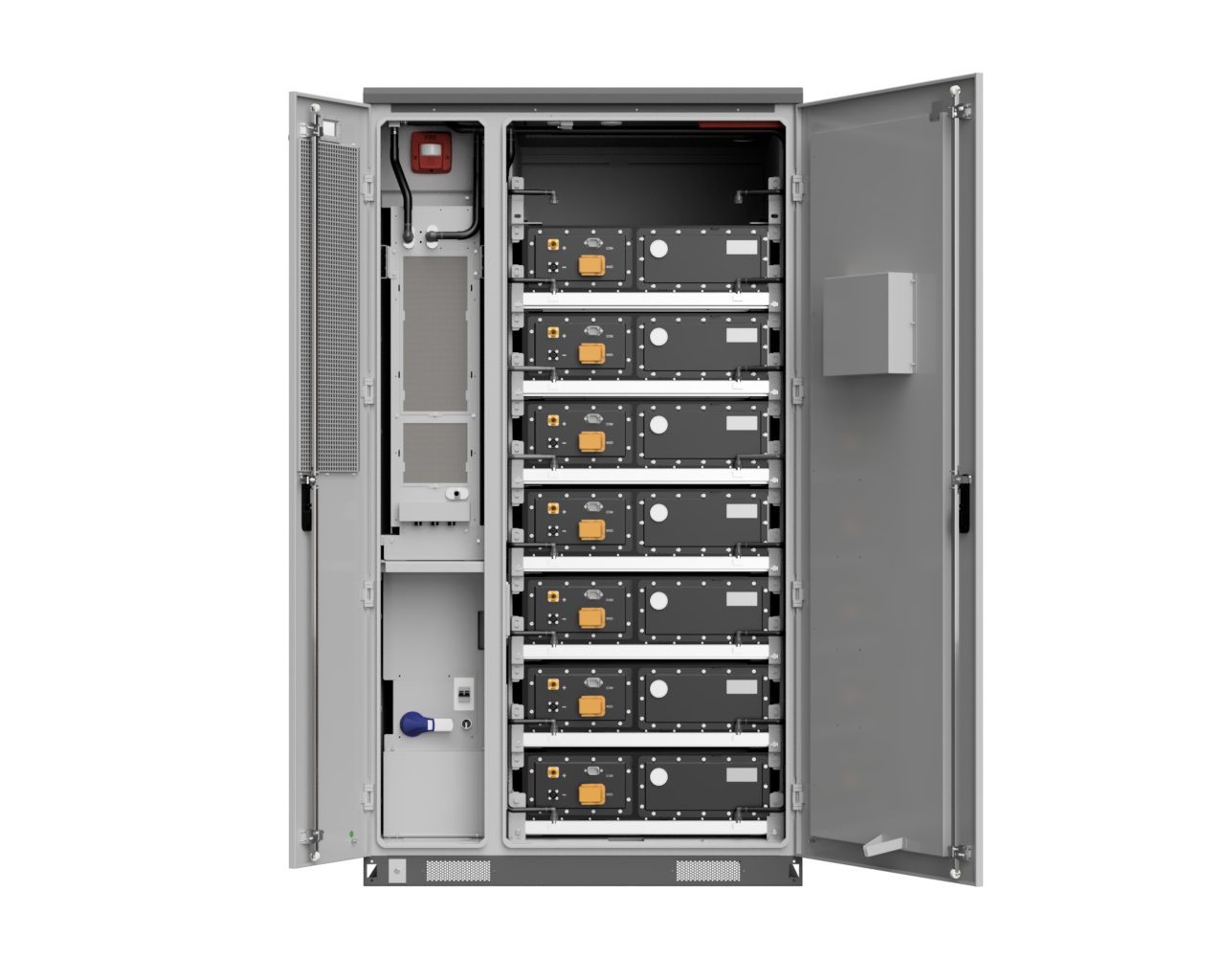

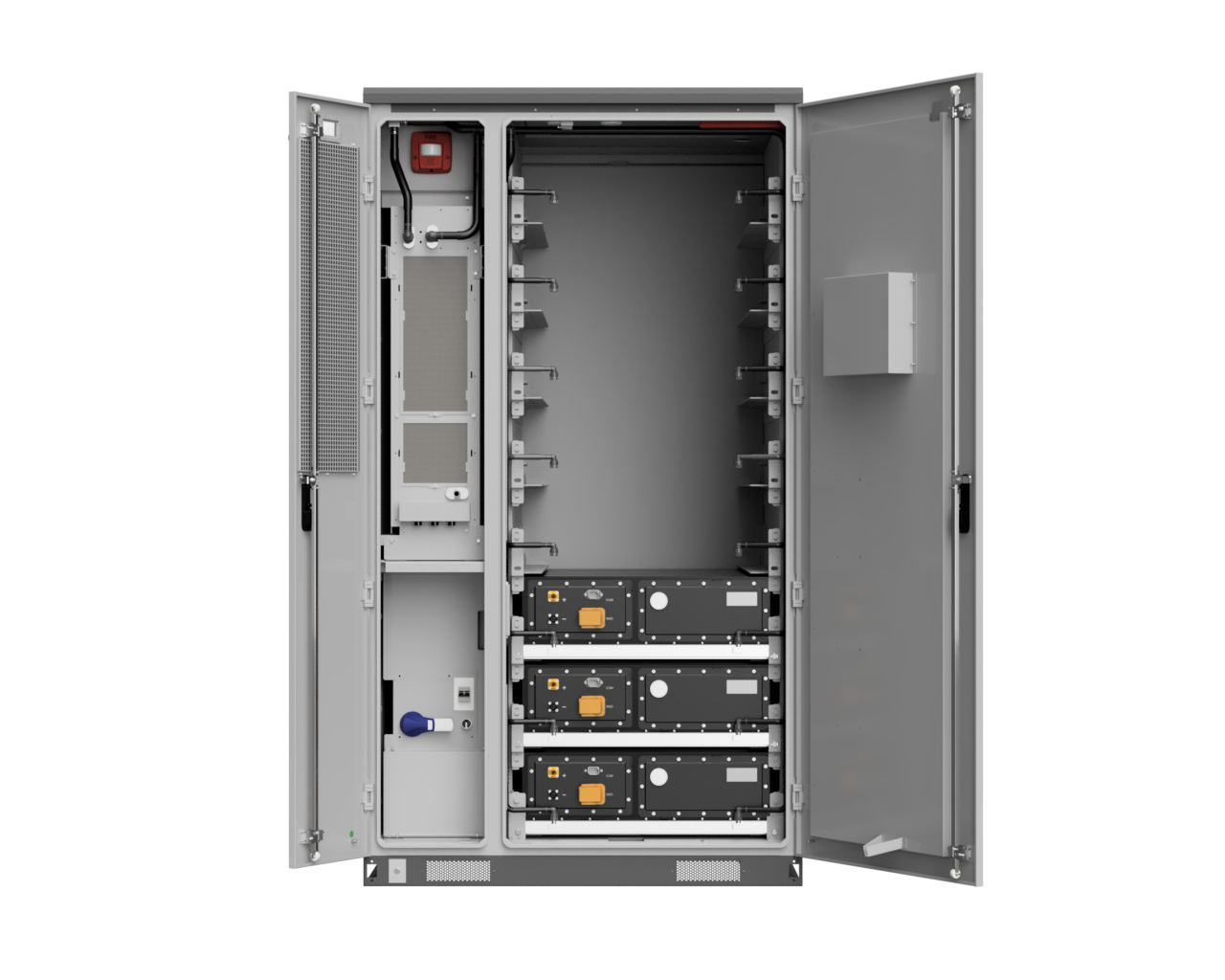

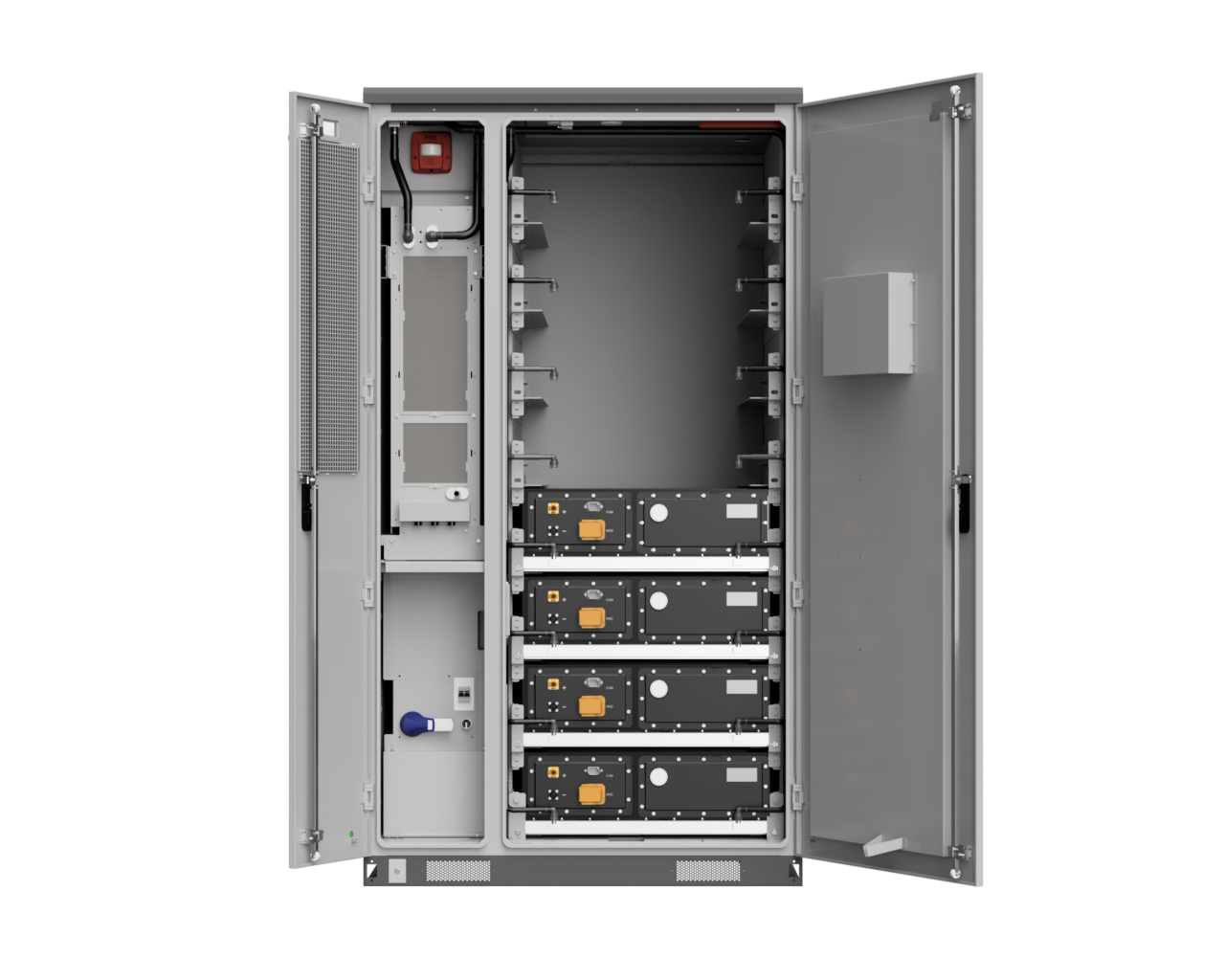

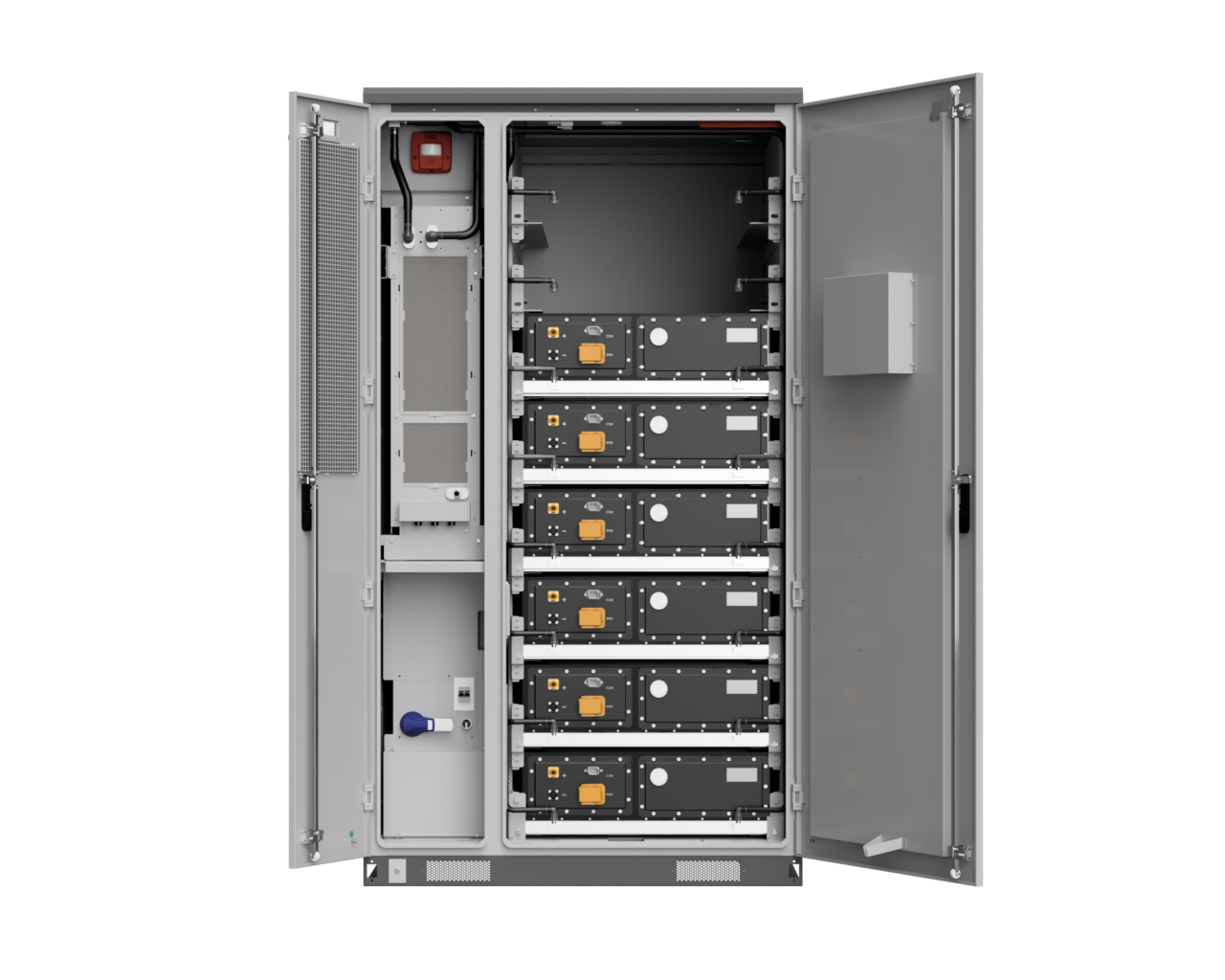

| Model Number | CAB-106 | CAB-160 | CAB-210 | CAB-266 | CAB-318 | CAB-372 | CAB-426 |
|---|---|---|---|---|---|---|---|
| Configuration |  104S1P (2 packs @ 52S1P) |
 156S1P (3 packs @ 52S1P) |
 208S1P (4 packs @ 52S1P) |
 260S1P (5 packs @ 52S1P) |
 312S1P (6 packs @ 52S1P) |
 364S1P (7 packs @ 52S1P) |
 416S1P (8 packs @ 52S1P) |
| Nominal Energy Capacity | 106 kWh | 160 kWh | 212 kWh | 266 kWh | 318 kWh | 372 kWh | 426 kWh |
| Usable Energy Capacity | 104 kWh | 157 kWh | 209 kWh | 261 kWh | 313 kWh | 366 kWh | 418 kWh |
| Battery Max. Continuous Power | 52 kW | 78 kW | 104 kW | 131 kW | 157 kW | 183 kW | 209 kW |
| System Nominal Voltage | 332.8 V | 499.2 V | 665.6 V | 832.0 V | 998.4 V | 1164.8 V | 1331.2 V |
| Voltage (Min) | 312 V | 468 V | 624 V | 780 V | 936 V | 1092 V | 1248 V |
| Voltage (Max) | 358.8 V | 538.2 V | 717.6 V | 897 V | 1076.4 V | 1255.8 V | 1435.2 V |
| Usable Cell Capacity | 314 Ah | ||||||
| Continuous Current | 157 A | ||||||
| Nominal Cell Capacity | 320 Ah | ||||||
| RTE | 94% | ||||||
| Temperature | −30°C to 55°C (−22°F to 131°F) | ||||||
| Communication | CAN, RS485 | ||||||
| Cooling Method | Liquid Cooling | ||||||
| Protection Level | IP55 (NEMA 3R) | ||||||
| Product Weight | 1770 kg (3990 lb) |
2130 kg (4700 lb) |
2490 kg (5490 lb) |
2850 kg (6285 lb) |
3190 kg (7050 lb) |
3570 kg (7875 lb) |
3930 kg (8675 lb) |
| Dimensions | 1300 × 1300 × 2375 mm (51 × 51 × 93 in) | ||||||
| Testing & Certifications | UN38.3, UL1973, UL9540A, UL9540, IEC62619, IEC62933, IEC61000 | ||||||
