As a Sinexcel integration partner we bring:

• Field-tested commissioning packages.
• Pre-configured BMS-PCS mappings. Custom microgrid design and transfer integration (if required).
• Project sizing, drawings, and site-level controls via EMS or MGC.

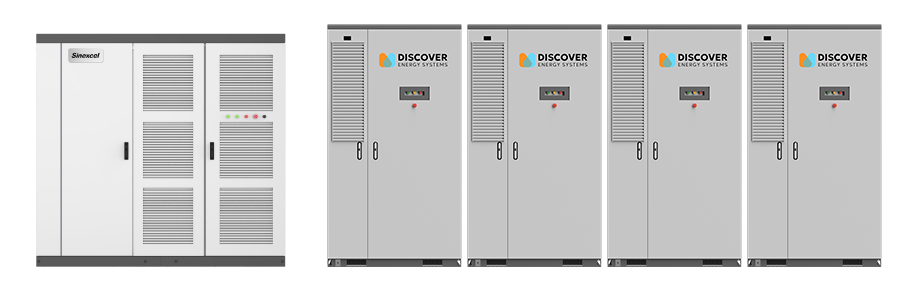

We lead with our Cabinet Outdoor Energy Storage, designed for seamless integration with Sinexcel PCS and other inverter platforms. Our integration efforts support a simple goal, to deliver more value through every battery we ship. We ensure each battery deployment is:

• Properly designed to match project voltage, current, and runtime requirements
• Fully integrated with PCS, EMS, and Microgrid Control (MGC).
• Commissioned with confidence using validated, field-proven configurations

WHY CHOOSE THIS SOLUTION

Integration, Not Just Components

• Prevalidated communication via LYNK II (closed-loop CAN/Modbus between Cabinets and Sinexcel).

• Seamless PCS paralleling via ComAp MGC (grid, DER, genset integration).

• One SKU, one commissioning pathway.

Scalability
& Flexibility

• Multi-MWh with modular cabinets.

• PCS scaling from 450 kW to 1.7 MW depending on AC voltage and module count.

• Parallel expansion on the AC bus without redesign.

• Choice of 480V, 600V, 690V AC backbone for flexibility.

Bankable Safety
& Compliance

• Cabinet: UL9540, UL9540A, IEC62619, full fire suppression, thermal runaway mitigation.

• Sinexcel PCS: UL1741-SB, IEEE1547, global grid codes.

• ComAp MGC: Certified to international EMC and safety standards, hot-swap redundancy, black start capability.

Microgrid-Centric
Control

• Grid-following & Grid-forming VSG capability.

• Black start & islanding support.

• Renewable-first dispatch logic.

• Coordinated BESS Operation.

Applications
& Value Creation

• Peak Shaving, Demand Charge Reduction & TOU Shift

• Resiliency and Reliability, Backup Power & Critical Infrastructure.

• Renewable Integration, Self-consumption, EV Charging and Heavy Infrastructure Support.

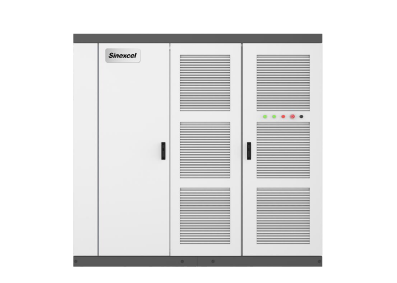

SINEXCEL

POWER CONVERSION SYSTEM

High Power Range. Scalable from 125 kW to 1.72 MW per unit.

Outdoor Rated. NEMA 3R / IP54 enclosure.

High Efficiency. Up to 98.5% peak efficiency for maximum energy throughput.

Full Synchronous Operation. ComAp controller leverages Virtual Synchronous Generator (VSG) mode to deliver true synchronous performance, eliminating transfer delays and ensuring seamless transitions.

Advanced Grid Support. Grid-following for non-resilient applications, enabling full flexibility.

Flexible Integration. Standard Modbus TCP/RTU communications ensure smooth interoperability with BMS, EMS, and SCADA systems.

AES CABINETS

OUTDOOR C&I ENERGY STORAGE

Space-Efficient. High-energy density cabinet with optimized thermal management.

Scalability. Configurable to meet power and capacity requirements.

High Efficiency. Up to 94% round-trip efficiency (RTE).

Enhanced Safety. Audible and visual alarms with E-stop, heat and smoke detection, aerosol fire suppression and passive deflagration vent.

Flexible Integration. Compatible with third-party PCS, SCADA, and EMS systems.

Durable and Long-Lasting. Engineered for a 20-year service life, designed for easy maintenance and serviceability

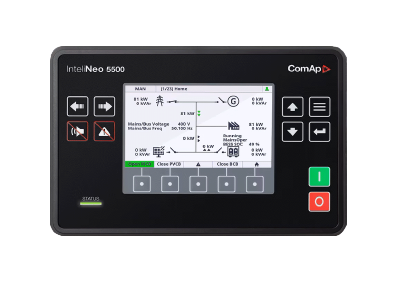

ComAp

MICROGRID CONTROL

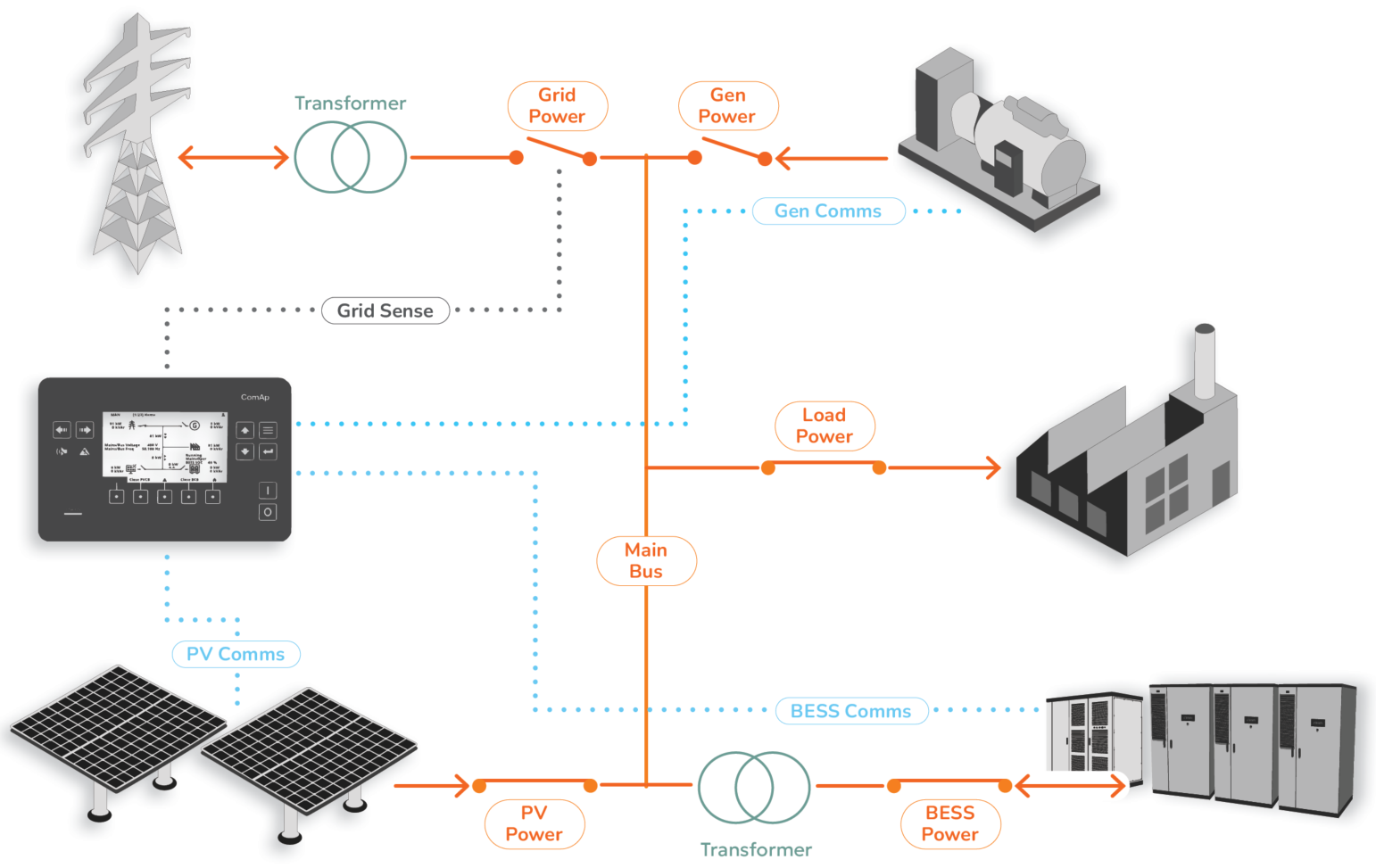

The ComAp controller acts as the central coordinator of the system architecture, delivering grid synchronization, automated breaker control, and VSG-based grid-forming for seamless transitions with no transfer delay.

This microgrid control ensures resilient operation with black start capability, advanced power management, and precise PLC-driven control of BESS, PCS, renewables, and gensets.

With built-in cybersecure communications, remote monitoring, and global grid code compliance, ComAp provides the highest level of reliability, security, and system resiliency.

Contact us to get started designing your project with Discover + Sinexcel.
