LYNK II Communication Gateway
LYNK II Communication Gateway aggregates and displays the State-of-Charge for Discover AES RACKMOUNT and AES LiFePO4 batteries in real-time.
LYNK II
Communication
Gateway - Solar
We want to hear from you.
Our global sales team, located in major centres around the world, is standing by to provide guidance and advice as well as answer specific questions about all of your unique applications.
GLOBAL HEADQUARTERS
#7-13511 Crestwood Place, Richmond, BC Canada V6V 2E9
Tel: +1-778-776-3288 Fax: 604-248-0175

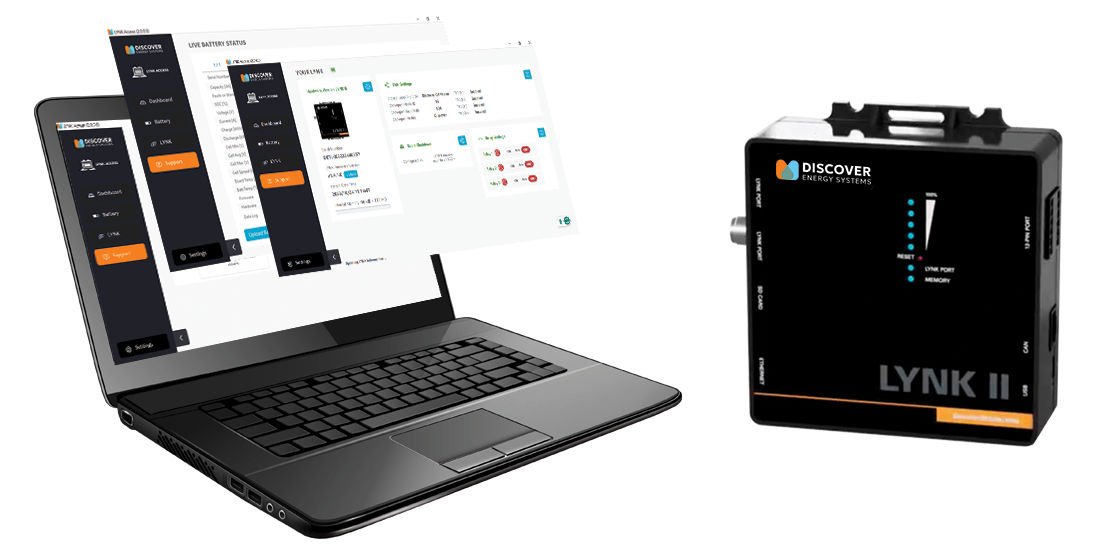

LYNK II Communication Gateway aggregates and displays in real-time the State-of-Charge for Discover AES RACKMOUNT and AES LiFePO4 batteries. Unlock the full potential of these lithium batteries by enabling them to optimize the charging configurations of the world's best off-grid inverter-chargers and solar charge controllers.
Turn a good solar system into a great one with up to 40% improvement in 0% to 100% SOC recharging time. Remotely monitor SOC, and data log multiple sites using the data monitoring services offered by off-grid inverter systems.
Product Features
Status View
- At-a-Glance State of Charge LED Indicator
- Communication status
Ports
- LYNK Port - RJ45
- LYNK Port - IEC (M12 -5 PIN)
- CAN Out - Ethernet RJ45
- CAN Out - Phoenix
- USB Device - Type B- Mini
- Power Inputs Nominal - Phoenix 13-90 V, LYNK Port 12 V, USB 5 V
Memory
- SD Memory Card
Programmable Relays
Phoenix: NO, NC COMM (1) / NO, COMM (2)
- A single LYNK Gateway supports up to 20 parallel batteries
- State of Charge (SoC), voltage, temperature and battery status is communicated in realtime to hybrid inverter-charger
- Charge voltage and current targets, voltage, temperature, current, and diagnostics
- Remotely monitor the aggregate SoC for a string of batteries and data log sites using the data monitoring services offered by multiple brands of off-grid inverters
- Battery related settings are automatically programmed for multiple brands of hybrid inverter-chargers and solar charge controllers
- Internal cell balancing is optimized, enabling the highest usable capacity and true 100% depth of discharge over the entire life of the battery
- Up to 25% faster 0% to 100% SoC charging with dynamic charge management
- Fast installation
- No special tools
- Plug-and-play
- Network batteries with other devices
- Configure for power conversion devices
- Monitor and troubleshoot with LYNK ACCESS
- Trigger relays using battery SoC and DC current to control external devices such as generators and HVAC
- CE
LYNK ACCESS PC Software
- Configure LYNK Device
- Monitor Discover Lithium Batteries
- Troubleshoot and monitor Discover Lithium batteries
- Simulate and validate integration of Discover Lithium Batteries
The LYNK II Solar Advantage
LYNK II SELL SHEET
Click the link below to download the LYNK II Solar Sell Sheet.
Product Registration
Click on the REGISTER PRODUCT button and use the form to register your product(s) to validate your warranty.
Battery
Compatibility
Available Configurations for
Hybrid Inverter Chargers
- HELIOS ESS
- AES RACKMOUNT: 48-48-5120, 48-48-5120-H
Available Configurations for
Hybrid Inverter Chargers
- Schneider Electric - Xanbus Devices
- Schneider Electric - XW+, XW Pro
- Victron Energy - Color Control GX,
Venus GX, VE.CAN Devices - Studer Innotec - Xcom-CAN Devices
- Sol-Ark - 8K Hybrid, 12K Hybrid,
5K-P, 8K-P, 12K-P, 15K-P - Morningstar - GenStar
- Others
Closed-Loop Inverter Partners
