Turtle Cove North Eleuthera, Bahamas
Installer: Solar Freedom
We want to hear from you.
Our global sales team, located in major centres around the world, is standing by to provide guidance and advice as well as answer specific questions about all of your unique applications.
GLOBAL HEADQUARTERS
#7-13511 Crestwood Place, Richmond, BC Canada V6V 2E9
Tel: +1-778-776-3288 Fax: 604-248-0175
AES RACKMOUNT 48-48-5120

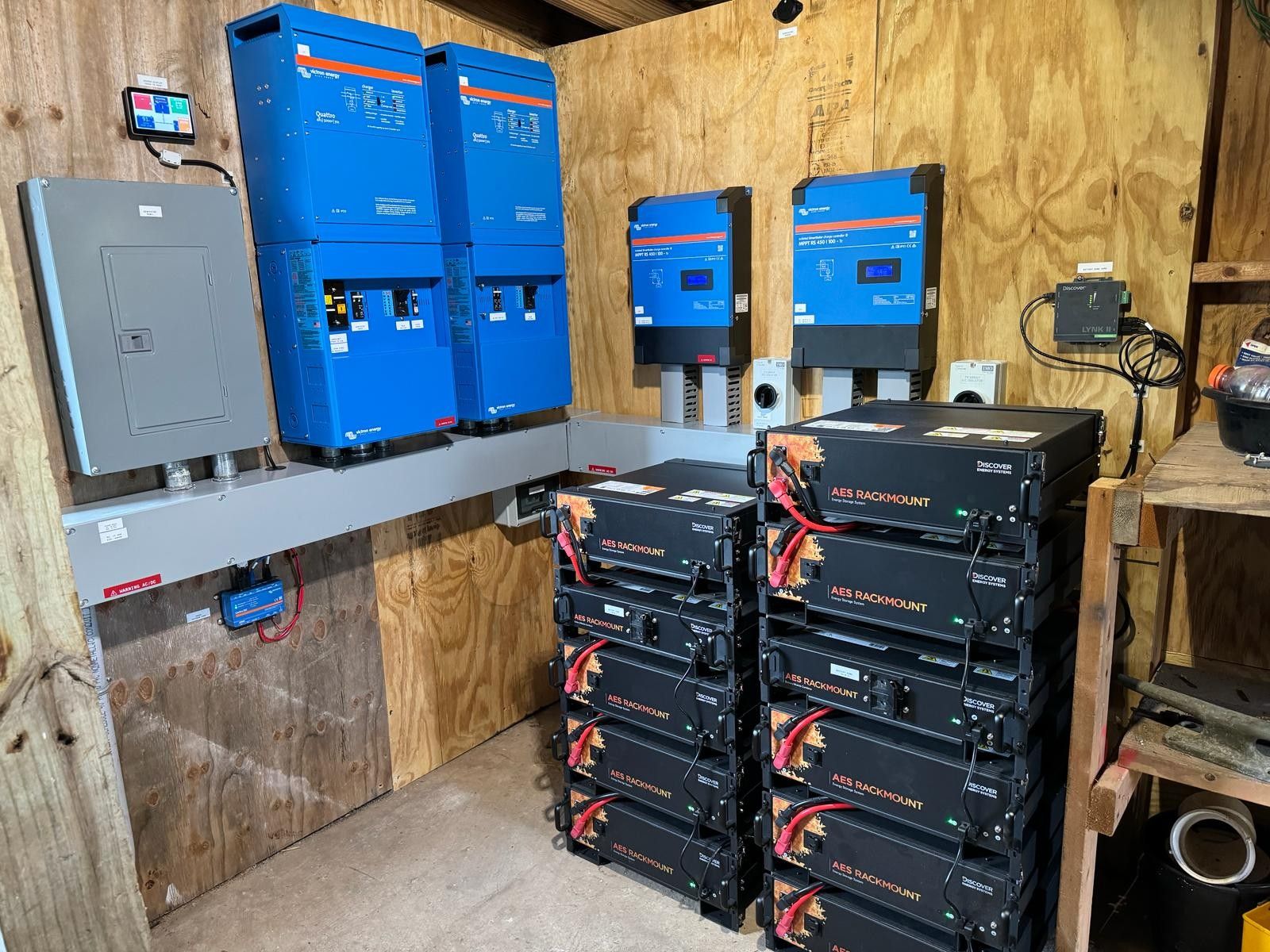

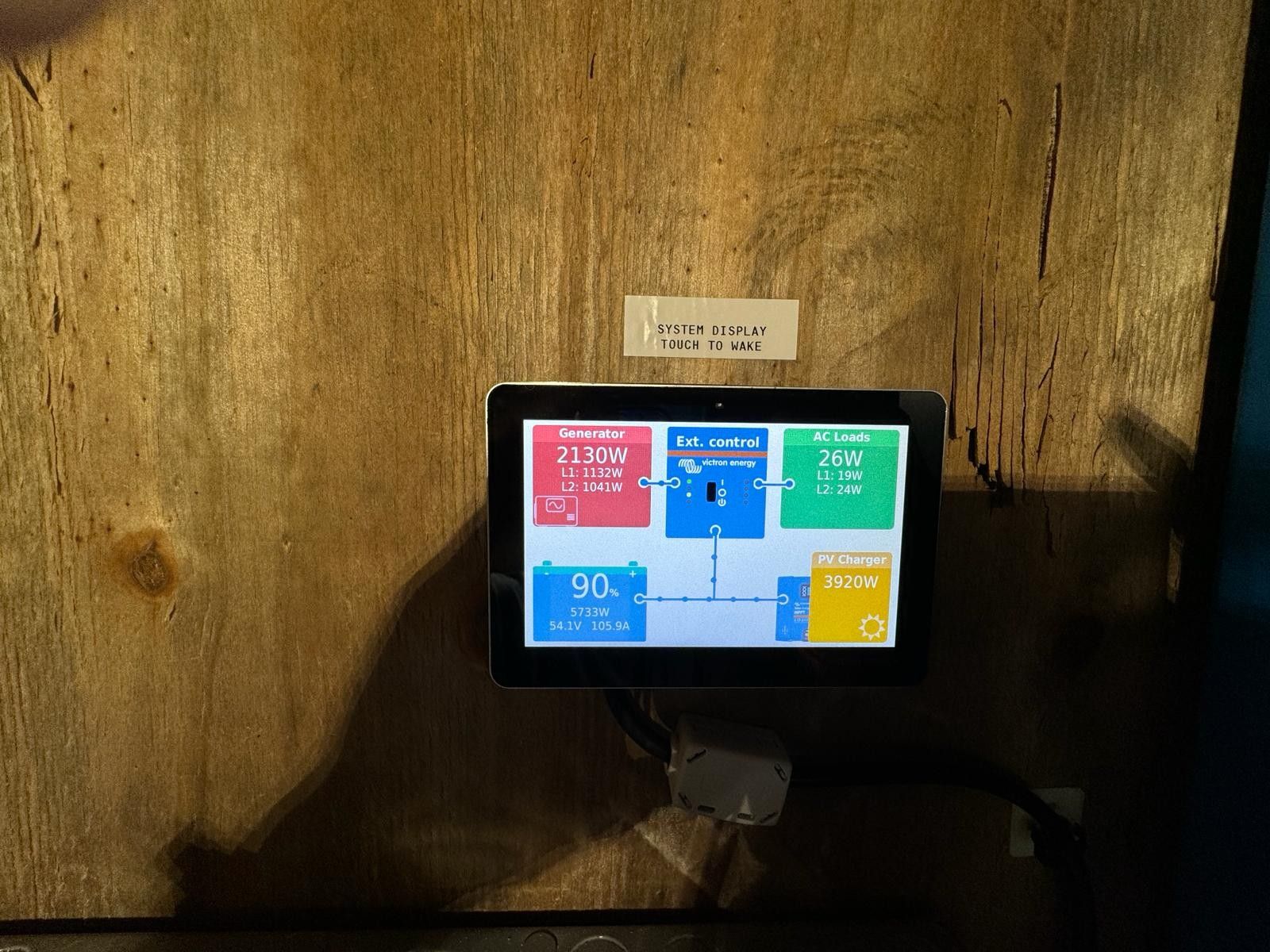

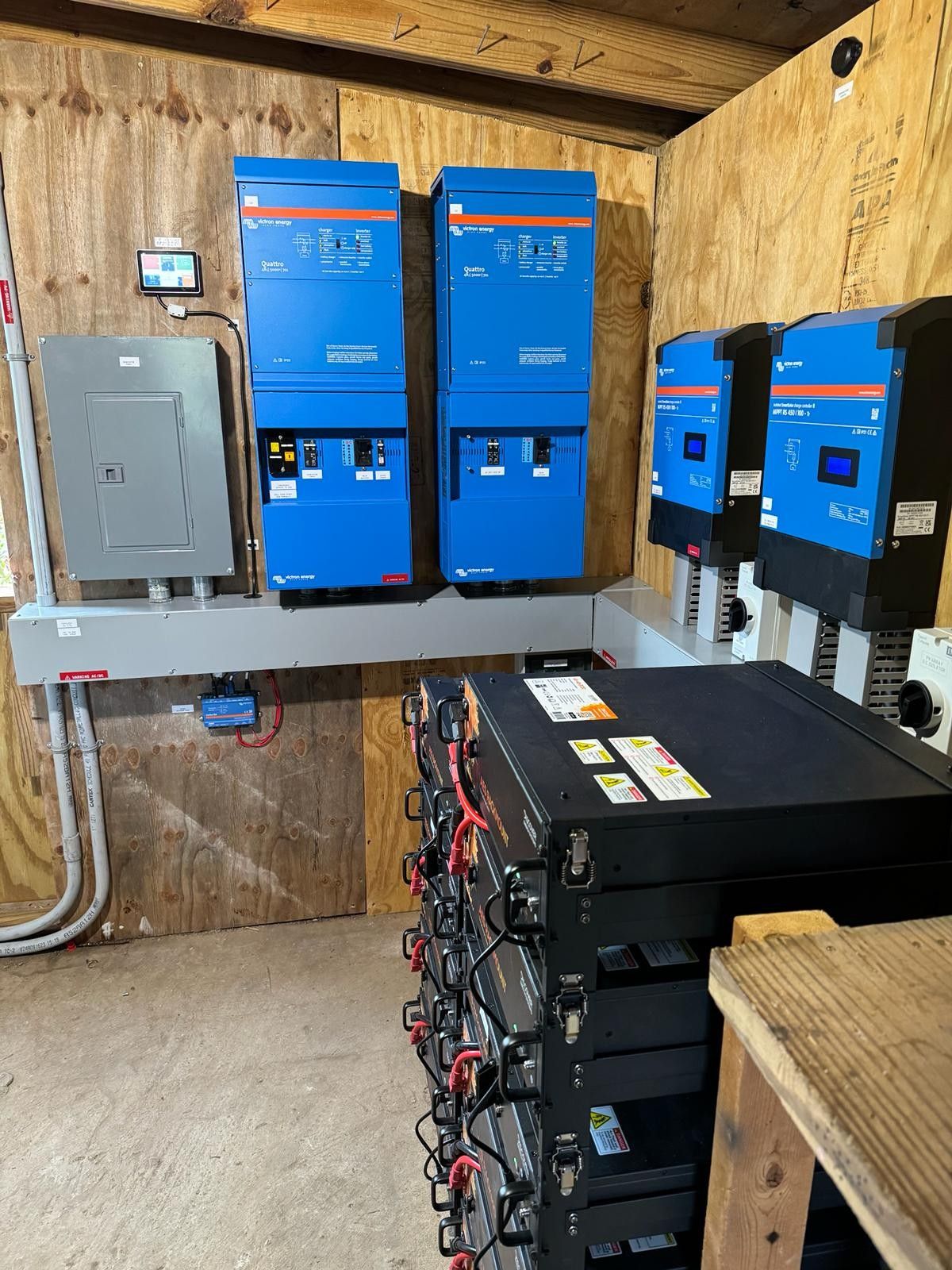

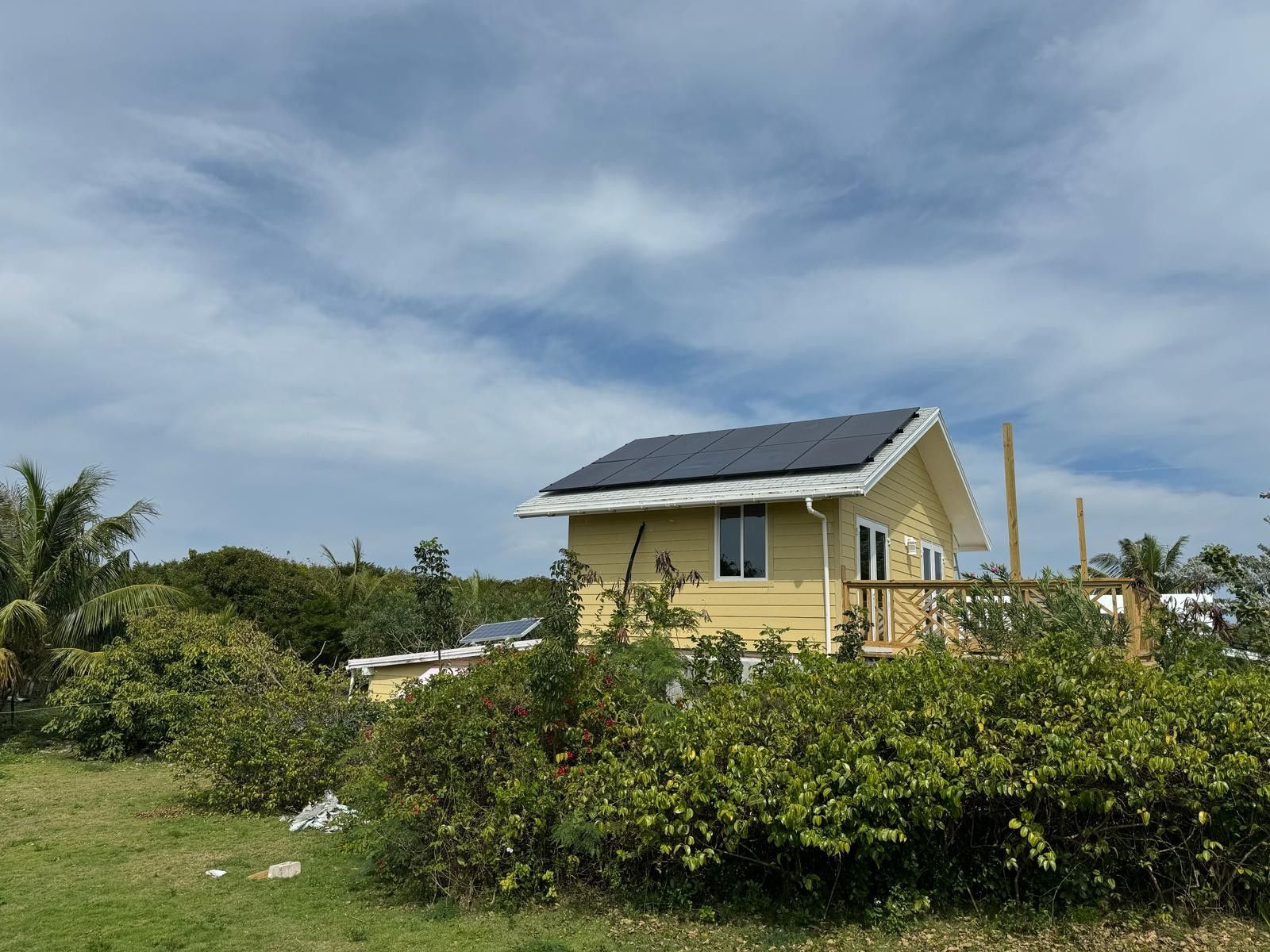

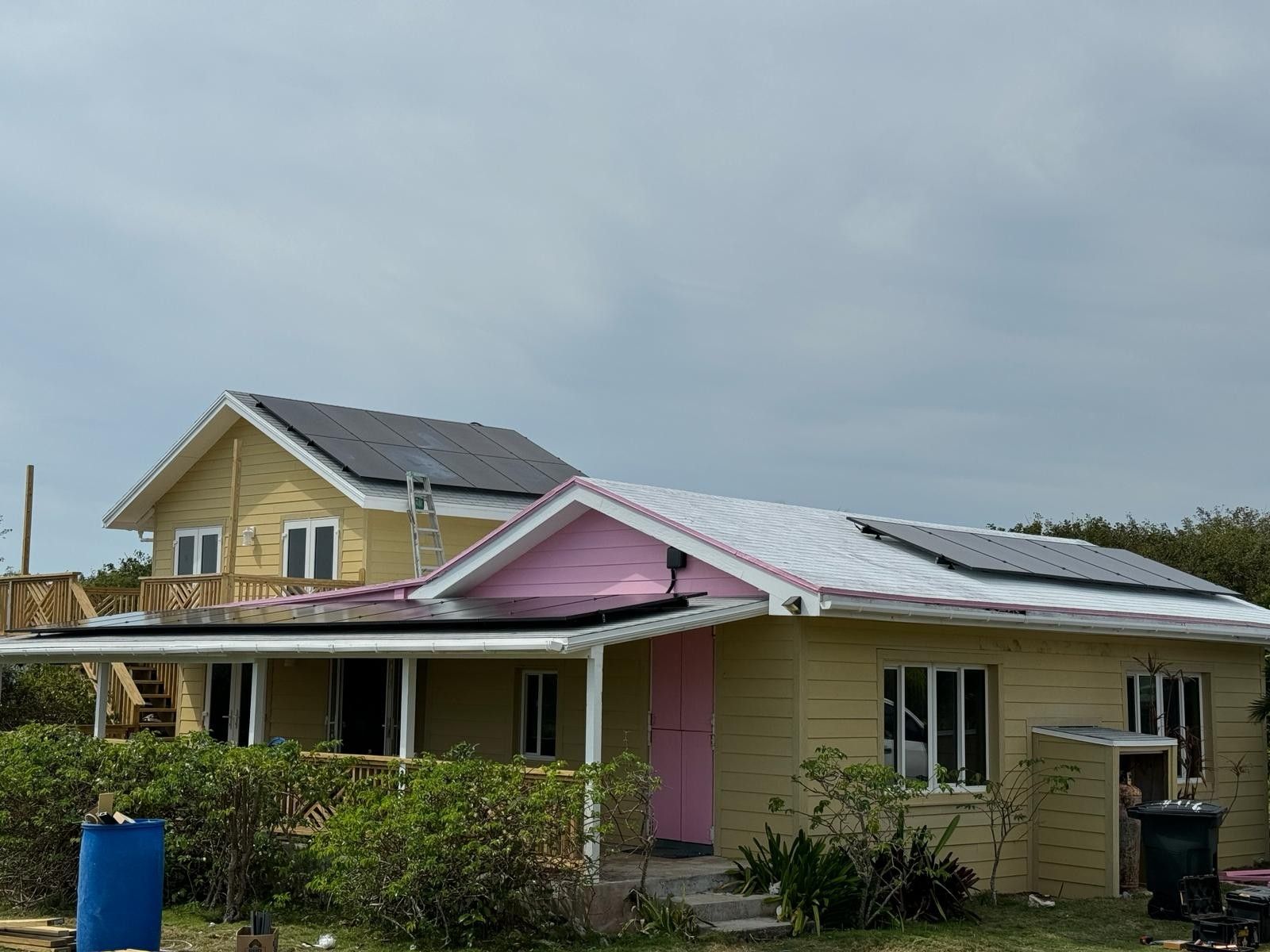

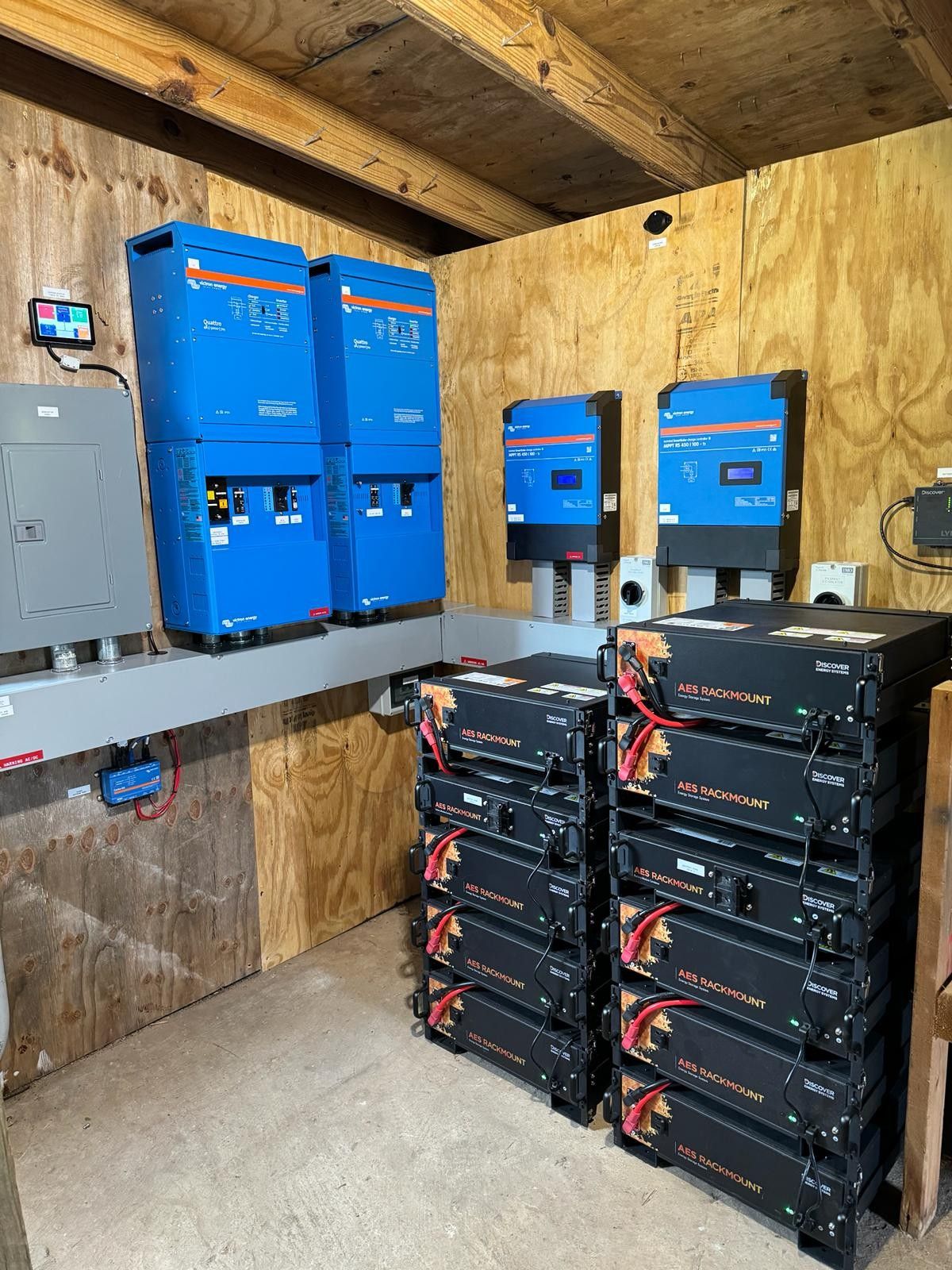

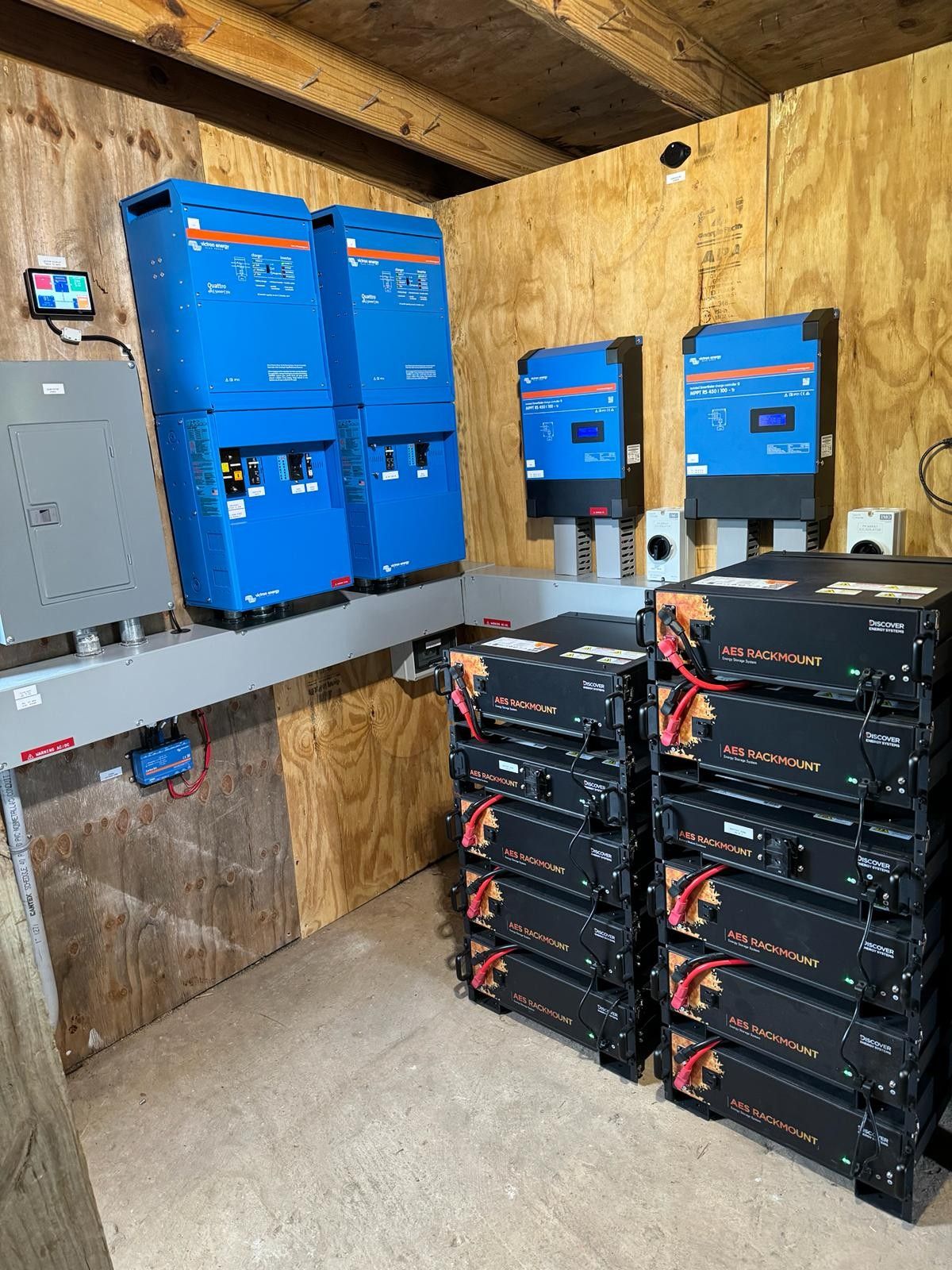

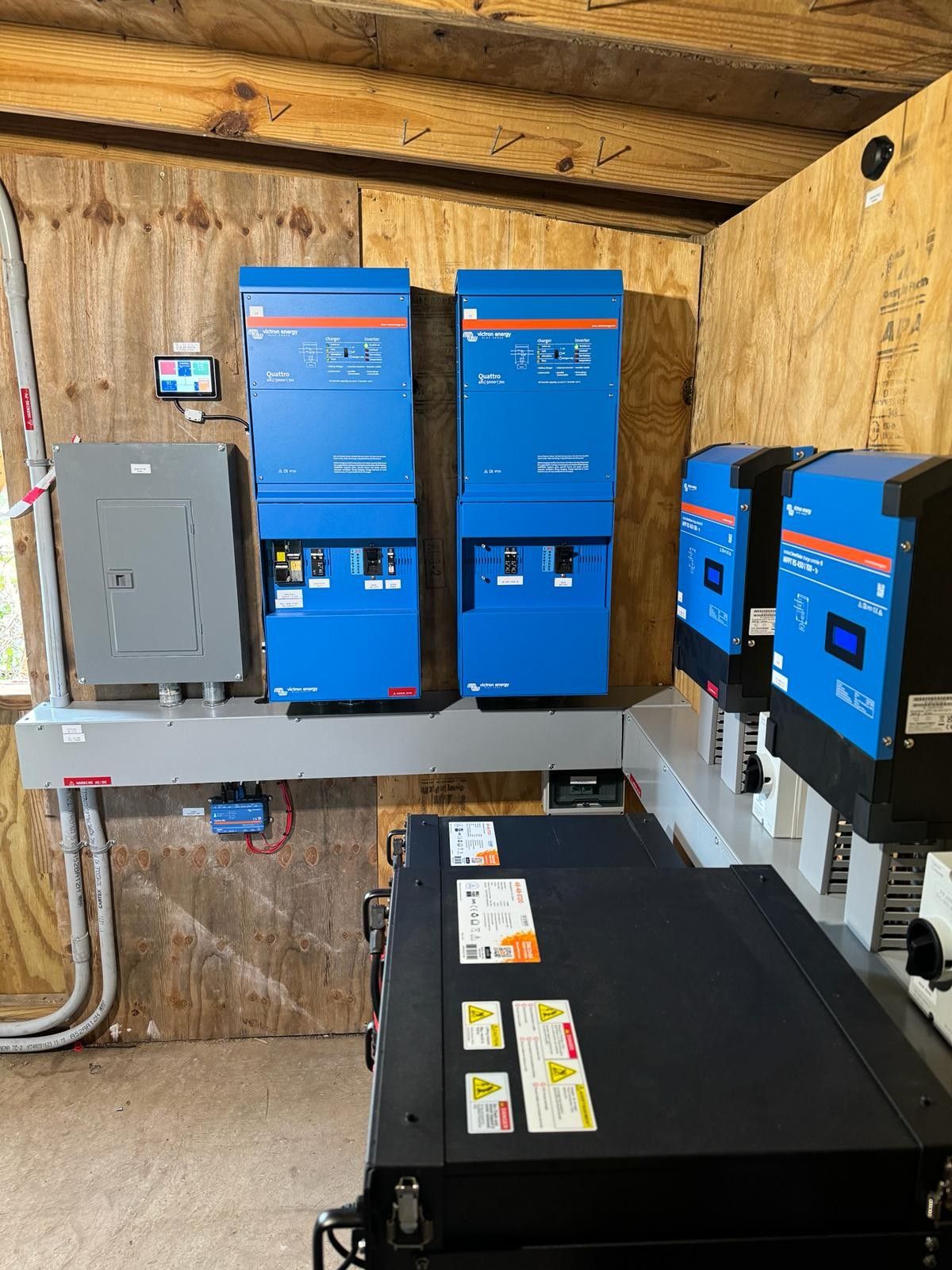

North Eleuthera, an outer island in the Bahamas, is the location of a farm house that was converted into a vacation home, located 10 miles away from the nearest power line. Whenever power was required, the home was powered by rotating a pair of 12 kVA diesel generators. Solar Freedom was called in to design an easy to install off-grid solar power system that could be monitored remotely, fully integrated with a backup generator, with a minimum power output of 10 kVA, to replace the aging diesel generators. The solution was two Victron inverters and two MPPT charge controllers operating in a closed-loop configuration through a LYNK II Communication Gateway with nine AES RACKMOUNT lithium batteries, 34 JA Solar panels and a backup 12 kVA Kubota diesel generator. Victron’s VRM platform would provide the remote monitoring to create a window into the solar system’s operations.
System Components
DISCOVER PRODUCTS
- 9 x 48-48-5120, AES RACKMOUNT Battery Modules
- 2 x AES RACKMOUNT Battery Module Combiners (950-0049)
- 11 x Quick Stack Racks (950-0050)
- 1 x LYNK II (950-0025)
OTHER EQUIPMENT
- 2 x Victron Quattro 48/5000/70100/100 120V
- 2 x Victron SmartSolar MPPT RS 450/100 TR Charge Controllers
- 34 x JA Solar 395W Panels
- 1 x 12 kVA Kubota Diesel Genset Outfitted with a GC10 auto start kit
APPLICATION
Off-Grid Residence
REQUIREMENT
Off-grid installation, AC power output of 10 kVA, integrated with backup generators
