AES CABINET
OUTDOOR C&I ENERGY STORAGE
Customizable BESS solution to be pair with your choice of PCS and EMS.
AES CABINET
This cabinet-based BESS delivers robust performance in smaller footprints
ideal for commercial, industrial, and distributed energy projects—providing the versatility needed for industrial self-consumption, grid stabilization, microgrid/off-grid support, and EV charging
Residential Buildings
Commercial Offices
EV Charging Stations
Restaurants, Convenience & Grocery Stores
Banks, Pharmacies &
Schools
Data Centers, Warehouses & Industrial Facilities
A compact, modular cabinet solution engineered for 1500 VDC or lower applications. Designed for seamless integration with a wide range of advanced Power Conversion Systems (PCS), it offers a flexible, scalable approach to energy storage.
Industrial Self-Consumption (Arbitrage)Store energy during low demand or high renewable output, discharge during peak demand, and cut grid reliance. | Grid StabilizationDeliver rapid-response storage to balance supply-demand, stabilize frequency, and integrate renewables. |
Microgrid & Off-Grid SupportPower microgrids with reliable storage, ensuring energy for remote areas and outages. | EV Charging SupportStore energy and manage loads to expand EV infrastructure while easing grid strain. |
PRODUCT FEATURES
Space-efficient cabinet form factor with optimized thermal management.
Configurable to meet various power and capacity requirements, easily expanded as needed.
Achieves up to 94% round-trip efficiency (RTE) for DC charge/discharge.
UL1973 Certified, UL9540A tested and UL9540 DC ESS (3rd Edition) other relevant standards, ensuring a high level of safety and reliability.

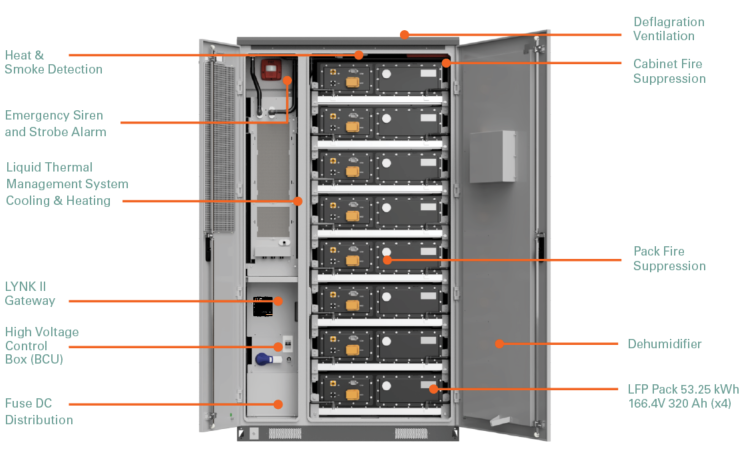

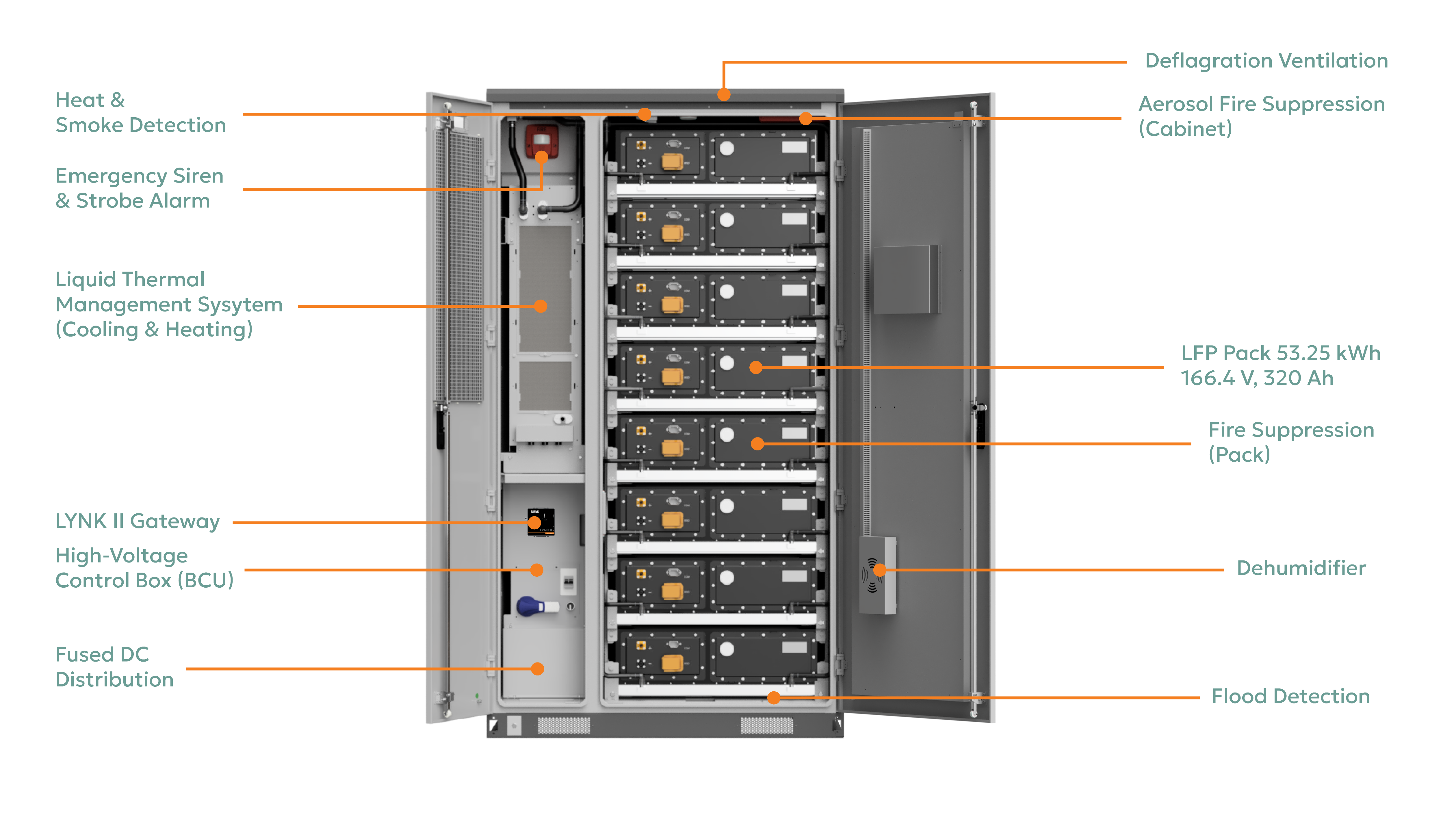

Incorporates temperature and smoke detection; with active fire suppression and controlled ventilation.
Fully compatible with third-party PCS, SCADA, and EMS systems, enabling tailored system architectures.
Engineered for a 20-year service life, designed for easy maintenance and serviceability.
Compact enclosure reduces footprint, simplifies installation, and speeds project timelines.
MODEL |
| ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
Configuration |
| ||||||||||
Nominal Energy Capacity |
| ||||||||||
Usable Energy Capacity |
| ||||||||||
Battery Max. Continuous Power |
| ||||||||||
System Nominal Voltage |
| ||||||||||
Voltage (Min) |
| ||||||||||
Voltage (Max) |
| ||||||||||
Usable Cell Capacity | 314 Ah | ||||||||||
Continuous Current | 157 A | ||||||||||
Nominal Cell Capacity | 320 Ah | ||||||||||
RTE | 94% | ||||||||||
Temperature | -30°C to 55°C (-22°F to 131°F) | ||||||||||
Communication | CAN, RS485 | ||||||||||
Cooling Method | Liquid Cooling | ||||||||||
Protection Level | IP55 (NEMA 3R) | ||||||||||
Product Weight |
| ||||||||||
Dimensions | 1300 × 1300 × 2365 mm (51 × 51 × 93 in) | ||||||||||
Testing & Certifications | UN38.3, UL1973, UL9540A, UL9540, IEC62619, IEC62933, IEC61000 |
How do I work with Discover?
Discover sells its commercial products through distribution, EPCs and developers. Tell us about you and your company, and a member of our sales team will reach our to you shortly.
