AES 210HV &
SOLIS 30 - 60kW
Inverter Integration

High-Voltage Storage Made Easy for Commercial and Industrial Projects


We want to hear from you.

Our global sales team, located in major centres around the world, is standing by to provide guidance and advice as well as answer specific questions about all of your unique applications.

GLOBAL HEADQUARTERS
#7-13511 Crestwood Place, Richmond, BC Canada V6V 2E9
Tel: +1-778-776-3288   Fax: 604-248-0175



Get a Quote
SELL SHEET
INTEGRATION GUIDE
With LYNK Connectivity!

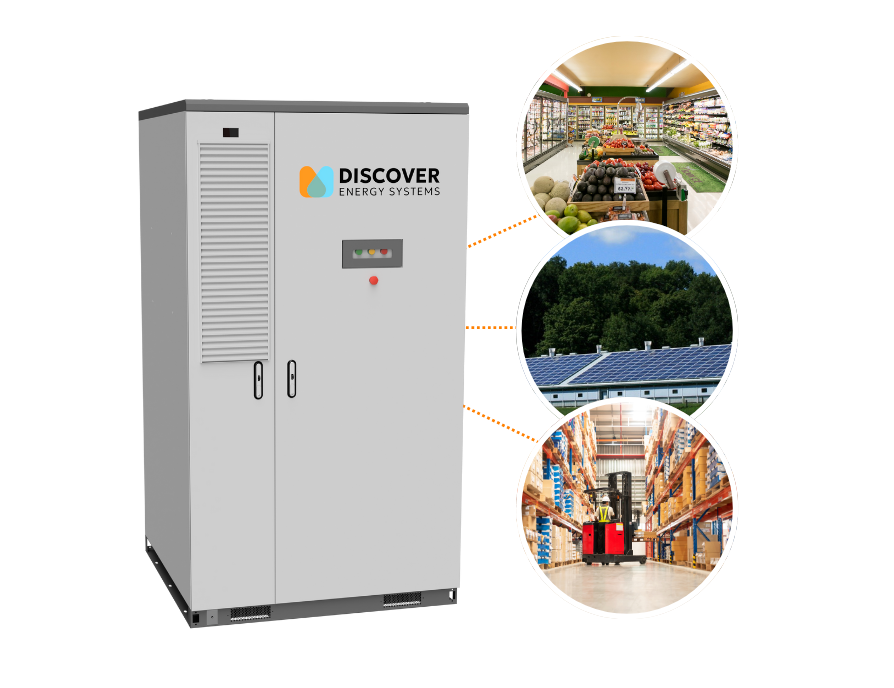

Discover’s AES 210HV battery cabinet pairs seamlessly with the Solis S6-EH3P (30–60kW) hybrid-inverter series, offering a simple, scalable, and proven energy storage solution for commercial and industrial applications. Whether you're reducing demand charges, optimizing solar, or adding resilient backup, this combo is ready to deploy.


Plug-and-Play Integration

Voltage Match

AES 210HV’s 665 VDC nominal aligns with Solis’s 150–800 VDC battery range.



Dual Battery Terminals

Connect directly to both Solis battery ports using the cabinet’s internal fused DC distribution.

Closed-loop control

Built-in LYNK II Gateway enables real-time CANBus communication with Solis BMS1/BMS2.



Supports black start

Supports black start, event logging, SoC reporting, and full inverter coordination.

SOLIS INVERTER

AES 210HV
Cabinets

AC
Output

Usable
Storage

Runtime
Estimate

1x 30K (208V)

1x AES 210HV

30 kW

209 kWh

~6.3 hours

1x 30K (480V)

1x AES 210HV

30 kW

209 kWh

~6.3 hours

1x 60K (480V)

1x AES 210HV

60 kW

209 kWh

~3.5 hours

1x 60K (480V)

2x AES 210HV

60 kW

418 kWh

~7 hours

2x 60K (480V)

1x AES 210HV

Up to 104 kW (battery-limited)

209 kWh

~2 hours

Note: Each AES 210HV cabinet operates independently—no DC bus paralleling. Inverters are paralleled on the AC bus per Solis design guidance.

Alt Text

Supports 208V and 480V Applications

Whether your site is wired for 120/208V or 277/480V three-phase service, Solis has a model ready, and the AES 210HV is compatible with both:

  • 30K (208V) model: Ideal for restaurants, schools, and light commercial buildings
  • 30K / 60K (480V) models: Perfect for large commercial or industrial sites with higher voltage utility service
  • Run single or dual cabinet configurations, backed by closed-loop communication and runtime flexibility

Real-Time Visibility and Control

Each cabinet ships with a preconfigured LYNK II Gateway for:



customize icon

Closed-loop CANBus communication with Solis inverters.

integration icon

Monitoring of battery SoC, temperature, voltage, current.


time icon

Event logging and safe fault isolation.

safety icon

Access via LYNK ACCESS (local) or LYNK CLOUD (remote monitoring).

Built for C&I Reliability

  • Outdoor-rated cabinet: NEMA 3R / IP55.
  • Operates in harsh climates: -30°C to 55°C.
  • Integrated liquid cooling and heating.
  • Prewired auxiliary AC input with 480/240V transformer included.
  • UL9540A-tested, UL1973 certified, UL9540 compliant.




Simple. Scalable. Deployment Ready.

This isn’t a science project. With Discover + Solis, commercial energy storage is:

1. Choose your inverter(s).

2. Add 1 or 2 AES 210HV cabinets per inverter.

3. Use the included cables and LYNK II Gateway.

4. Power up. You are live.

Our team is available to support system design for advanced microgrids, cogeneration, or export-controlled systems.
